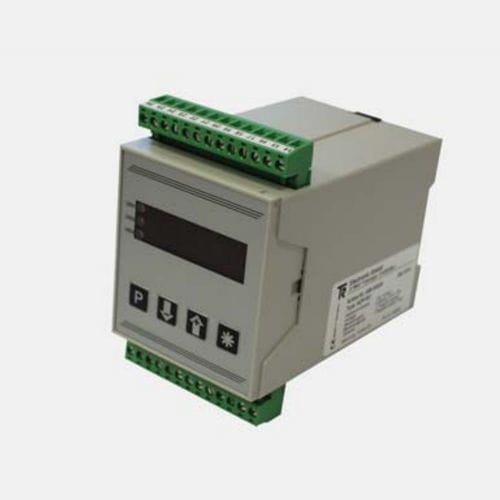

Numeric display ADP-001

for rotary encodersprogrammable

Display for absolute encoders Encoder interface: SSI (masteror passive listener) scaling, offset, chain measurement function ADP-001 (Item No.: 485-00220) Display for absolute encoders Encoder interface: SSI (master or passive listener) scaling, offset, chain measurement Output: 2 switched output Output options: Analog 16 bit, serial communication interface ADP-010 (Item No.: 485-00230) General characteristic data SSI signal input .......................................................singleturn or multiturn Resolution..............................................................10...25 bit Code ......................................................................binary or gray Clock output...........................................................driver RS422 / RS485 Clock input .............................................................receiver RS422 / RS485 Data input...............................................................receiver RS422 / RS485 Master mode Clock frequency .....................................................internal, 100 kHz or 200 kHz Conversion rate......................................................approximate 28 values/second Slave mode Clock frequency .....................................................external, max. 125 kHz Break of clock brushs ............................................min. 500 μs Conversion rate......................................................approximate 28 values/second Digital user inputs...................................................10 kΩ to +5V
