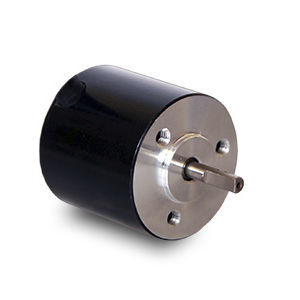

Brushless motor BR2826-12 DC12 V4-pole
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 12 V
- Number of poles
- 4-pole
- Other characteristics
- custom
- Power
5 W
(0.01 hp)- Intensity
1.25 A
- Torque
0.008 Nm
(0.0059 ft.lb)- Rotational speed
8,000 rpm
(50,265.4825 rad.min-1)- Diameter
28 mm
(1.1 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
Brushless DC motor, BLDC motor voltage 12VDC current 1.25A speed 8000rpm power 5W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling.
Catalogs
Complete BR Series Catalogue
26 Pages
