Brushless motor B42 series
DC24 V12 V

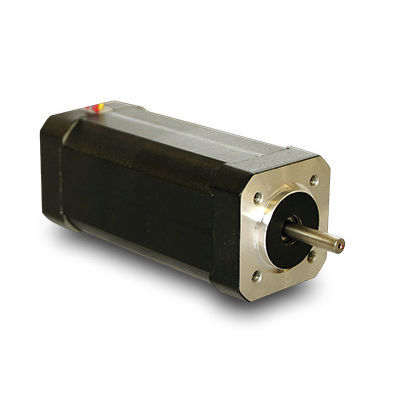

Brushless motor - B42 series - Transmotec Sweden AB - DC / 24 V / 12 V
Brushless motor - B42 series - Transmotec Sweden AB - DC / 24 V / 12 V
Brushless motor - B42 series - Transmotec Sweden AB - DC / 24 V / 12 V - image - 2
Brushless motor - B42 series - Transmotec Sweden AB - DC / 24 V / 12 V - image - 3
Brushless motor - B42 series - Transmotec Sweden AB - DC / 24 V / 12 V - image - 4
Add to favorites
Compare this product

Characteristics

Type
brushless, DC
Voltage
24 V, 12 V
Number of poles
4-pole
Power

26 W, 52 W, 78 W, 105 W
(0.04 hp, 0.07 hp, 0.11 hp, 0.14 hp)

Intensity

Max.: 6.5 A

Min.: 2 A

Torque

0.015 Nm, 0.022 Nm, 0.075 Nm, 0.3 Nm
(0.011063 ft.lb, 0.016226 ft.lb, 0.055317 ft.lb, 0.221269 ft.lb)

Rotational speed

4,000 rpm
(25,132.7412 rad.min-1)

Diameter

0 mm
(0 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -15 °C
(5 °F)

Description

Brushless DC motors, BLDC motors with power up to 650W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
