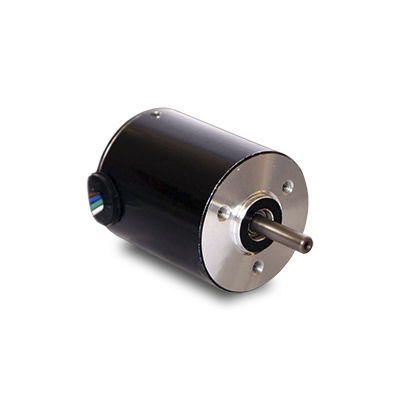

Brushless motor BR3337-12 DC12 V4-pole
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 12 V
- Number of poles
- 4-pole
- Other characteristics
- custom
- Power
4 W
(0.01 hp)- Intensity
0.8 A
- Torque
0.0264 Nm
(0.019472 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Diameter
33 mm
(1.3 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
Brushless DC motor, BLDC motor voltage 12VDC current 0.8A speed 3000rpm power 4W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling.
Catalogs
Complete BR Series Catalogue
26 Pages
