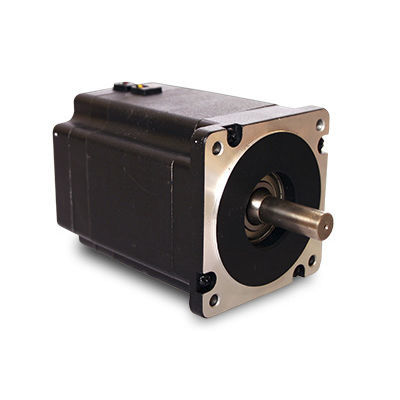

Brushless motor B86112-24 DC24 V4-pole
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V
- Number of poles
- 4-pole
- Other characteristics
- custom
- Power
393 W
(0.53 hp)- Intensity
23 A
- Torque
1.2 Nm
(0.885075 ft.lb)- Rotational speed
3,100 rpm
(19,477.8745 rad.min-1)- Diameter
0 mm
(0 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
Brushless DC motor, BLDC motor voltage 24VDC current 23A speed 3100rpm power 393W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling.
Catalogs
Complete BR Series Catalogue
26 Pages
