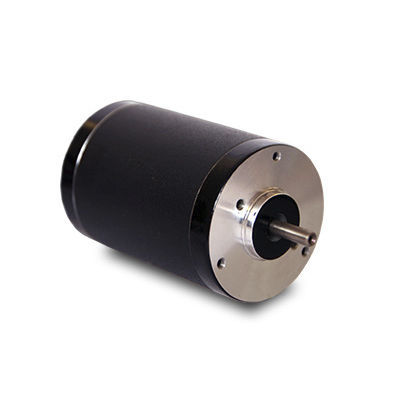

Brushless motor BR4260-12DC12 V8-pole
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 12 V
- Number of poles
- 8-pole
- Other characteristics
- custom
- Power
25 W
(0.03 hp)- Intensity
3.2 A
- Torque
0.067 Nm
(0.049417 ft.lb)- Rotational speed
4,200 rpm
(26,389.3783 rad.min-1)- Diameter
42 mm
(1.65 in)- Operating temperature
Min.: -15 °C
(5 °F)Max.: 40 °C
(104 °F)
Description
Brushless DC motor, BLDC motor voltage 12VDC current 3.2A speed 4200rpm power 25W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling.
Catalogs
Complete BR Series Catalogue
26 Pages
