Introduction

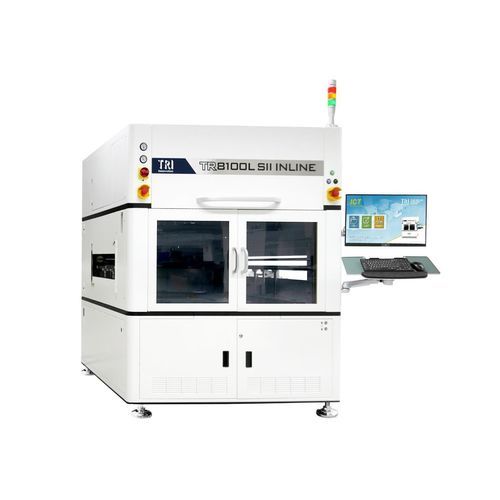

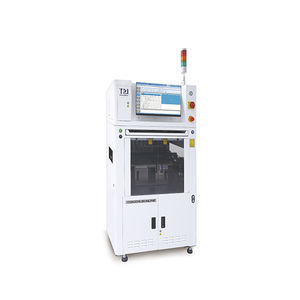

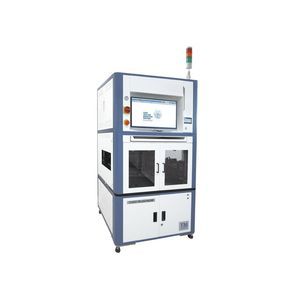

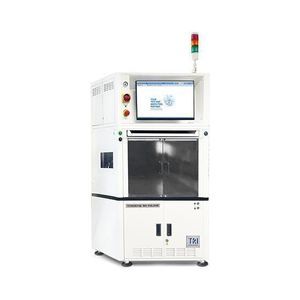

The TR8100 SII INLINE is a high-pin-count In-Circuit Tester (ICT) and Functional Tester (FCT) for AI server, 5G and telecom electronics production. Its vacuum fixture ensures full pin contact while a non-multiplexing 1:1 per-pin architecture supports up to 7056 test points for faster, deterministic testing and program development. Built-in self-diagnostics and compatibility with legacy TRI modules and fixtures simplify integration and maintain long-term uptime.

Features

• High-pin-count ICT + FCT solution: up to 7056 test points (MUX-free 1:1 per-pin architecture).
• High fault coverage with analog and digital measurement capabilities.
• Low-voltage device testing and high test throughput.
• Vacuum fixture for rapid, repeatable board handling.
• Ergonomic operator access and fixture debugging support.
• Built-in self-diagnostics and DMM auto-calibration.
• Intuitive, flow-based UI for simplified program development.

Tester Specifications
Max. Test Points: TR8100L SII INLINE: 3,584 points. Optional: 7,056 points
Operating System: Microsoft® Windows 11
Fixture Type: Vacuum type
Max. PCB Size: TR8100L SII INLINE: 50 x 90 – 920 x 610 mm
Max. PCB Weight: 8 kg (standard), optional 15 kg
Max. Component Height Clearance: Top: 90 mm / Bottom: 30 mm / Edge: 3 mm (optional 5 mm)
Conveyor Height: 900 – 970 mm

Standard Testing Components

• Analog Test Hardware:
• 6-wire measurement switching matrix
• Programmable AC/DC high voltage and current sources
• AC/DC voltage, DC current and frequency measurement
• Component R/L/C measurement
• Synthesized arbitrary waveform generator (AWG)
• TestJet vectorless open-circuit detection
• Digital Testing:
• Non-multiplexing 1:1 per-pin architecture with independent per-pin level setting
• DUT power supplies: fixed: +5V@5A, +3.3V@5A, +12V@5A, +12V@1A; programmable: +0.2V~+20V@3A (2 sets), -3V~-20V@3A (2 sets)
• On-board flash and EEPROM programming/support

Industry 4.0
Communication Standard: SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852
Yield Management System: YMS 4.0 (optional)

Optional Components

• Analog adapter kits for Teradyne, GenRad fixtures
• Programmable APPS power supplies — up to 75 V / 8 A / 200 W per channel
• BScan options: Chain, Cluster, Virtual Nails, Virtual Chain and IEEE1149.6 tests
• Serial Test Controller (STC) programming
• DPS programmable DUT power supplies (various models and channel/wattage options)
• ToggleScan test and VregTestTM multi‑phase PWM measurements

System Requirement
Power: 200–240 VAC, single phase, 50/60 Hz, 6 kVA
Power features: Earth-ground auto detection, 50/60 Hz auto detection
Air: Dry air 4–8 kg/cm2
Vacuum: Min. -0.86 bar (exhaust 70 m3/h)

Dimensions
WxDxH: TR8100L SII INLINE: 1550 x 1450 x 1870 mm
Weight: TR8100L SII INLINE: 1200 kg

Standard Testing Components / Additional Notes
Max. PCB Size (example): 50 x 90 – 920 x 610 mm
Max. Test Points variants: 3,584 (standard) / 7,056 (optional)

Characteristics / Technical specifications

• Model: TR8100 SII INLINE
• Max. test points: 3,584 (TR8100L) / optional 7,056
• Operating System: Microsoft® Windows 11
• Fixture type: Vacuum fixture
• Max. PCB size: 50 x 90 – 920 x 610 mm
• Max. PCB weight: 8 kg (standard), optional 15 kg
• Component clearance: Top 90 mm / Bottom 30 mm / Edge 3 mm (optional 5 mm)
• Conveyor height: 900 – 970 mm
• Analog test features: 6-wire matrix, programmable AC/DC sources, R/L/C measurement, AWG, TestJet
• Digital features: Non-multiplexing 1:1 per-pin architecture, fixed and programmable DUT power supplies
• Communication: SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852
• Power requirement: 200–240 VAC, single phase, 50/60 Hz, 6 kVA
• Air: Dry air 4–8 kg/cm2
• Vacuum: Min. -0.86 bar; exhaust 70 m3/h
• Dimensions (WxDxH): 1550 x 1450 x 1870 mm
• Weight: 1200 kg
