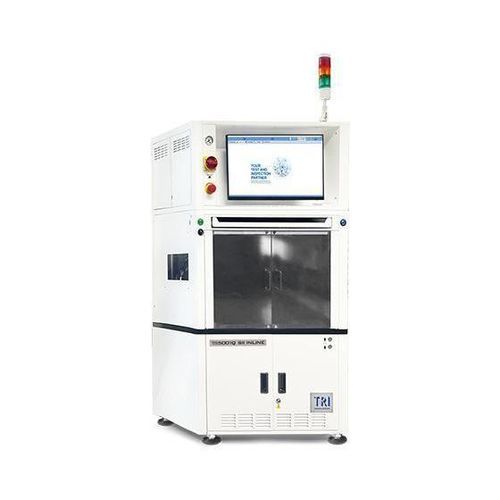

Capacitance tester TR5001 SII INLINE

performancenetworkvoltage

Introduction
The TR5001 SII INLINE is an inline parallel ICT+FCT system designed for high-throughput production testing. It integrates multi-core parallel testing with an SMEMA-compatible inline handler, a durable quick-disconnect fixture and built-in auto-calibration and self-diagnostics to support continuous operation and reduced operator intervention.

Key features

• Flexible multi-core parallel tester with up to 4 independent cores
• Serial Test Controller with up to 8 ports configurable on any pin
• Limited-access test capability and functional test expansion via PXI modules
• Built-in self-diagnostics and automatic calibration (DMM-assisted)
• High-accuracy analog/hybrid measurement and test performance
• SMEMA-compatible inline handler for automated board flow
• Intuitive UI enabling flow-based program development

Tester specifications

• Analog/hybrid test points: 1 Core – 3,456 (options: 4,480); 2 Cores – 3,328 (option: 4,096); 4 Cores – 4,096
• Operating system: Microsoft® Windows 11
• Fixture type: Inline with Quick Disconnection Interface

Standard testing components

• 6‑wire measurement switching matrix
• Programmable AC/DC high-voltage and current sources
• AC/DC voltage and DC current measurement
• Component R/L/C measurement
• TestJet vectorless open-circuit detection
• Arbitrary Waveform Generator

Industry 4.0
Communication standards: SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852
Yield Management System: YMS 4.0 (optional)

Optional components

• Digital testing: non-multiplexing 1:1 per-pin architecture with independent per-pin level setting
• Serial Test Controller (STC) programming
• DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3 A, -12 V@1 A, 24 V@3 A
• Programmable power (2 CH): 0.2–3 V@2 A max or 3–24 V@3 A max
• DPS programmable DUT supplies: DPS3514 (30 V max / 5 A max / 100 W max per channel / 4 CH per DPS); DPS3122 (30 V max / 10 A max / 200 W max per channel / 2 CH per DPS)
• BScan chain/cluster/virtual nails/virtual chain tests and IEEE1149.6 test
• Up to 8 high-speed serial ports, on-board flash and EEPROM

Board handling
Min PCB size: 50 x 50 mm
Max PCB size: 510 x 510 mm

System requirements
Power: 200–240 V, single phase, 50/60 Hz, 3 kVA
Power features: Earth ground auto-detection and 50/60 Hz auto-detection
Air: Dry air 4–8 kg/cm2

Dimensions
WxDxH: 900 x 1200 x 1680 mm (signal tower height: 392 mm)
Weight: 687 kg

Notes

• Designed for high-throughput inline ICT+FCT with multi-core parallel architecture
• SMEMA-compatible inline handler supports automated inline operation
• Built-in diagnostics, auto-calibration and quick-disconnect fixture for long-term reliability

Technical specifications

• Model: TR5001 SII INLINE
• Brand: Test Research, Inc. (TRI)
• Analog/hybrid test points: up to 4,096 (4 cores); configurable options available
• Operating system: Microsoft Windows 11
• Fixture type: Inline with Quick Disconnection Interface
• PCB size range: 50 x 50 mm – 510 x 510 mm
• Power: 200–240 V, single phase, 50/60 Hz, 3 kVA
• Air: Dry air 4–8 kg/cm2
• Dimensions (WxDxH): 900 x 1200 x 1680 mm (signal tower: 392 mm)
• Weight: 687 kg
