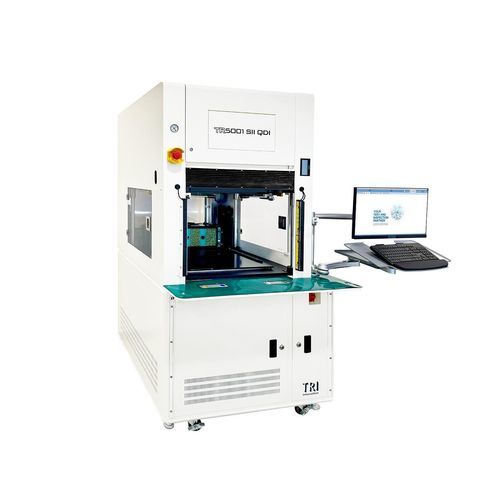

Capacitance tester TR5001 SII QDI

performancenetworkvoltage

Introduction
Next‑generation ICT+FCT solution delivering high throughput multi‑core parallel and merged‑core testing with up to 4 independent cores. TRI's advanced manual handler integrates a hands‑free safety design for uninterrupted operator flow and built‑in auto‑calibration to maintain long‑term measurement accuracy.

Features

• Flexible multi‑core parallel tester architecture (1–4 cores)
• Serial Test Controller with up to 8 ports assignable to any pin
• Expandable functional test and limited access solutions via PXI modules
• Built‑in self‑diagnostics and DMM‑based auto‑calibration
• High‑accuracy analog and digital measurement capabilities
• SMEMA‑compatible inline solution for high fault coverage
• Intuitive UI with flow‑based program development

Tester Specifications
Analog/hybrid test points: 1 Core = 3,456 (optional 4,480); 2 Cores = 3,328 (optional 4,096); 4 Cores = 4,096
Operating System: Microsoft® Windows 11
Fixture Type: Offline fixture with long‑life Quick Disconnection Interface

Standard Testing Components

• 6‑wire measurement switching matrix
• Programmable AC/DC high voltage and current sources
• AC/DC voltage and DC current measurement
• Component R/L/C measurement
• TestJet vectorless open‑circuit detection
• Arbitrary Waveform Generator

Industry 4.0
Communication: SMEMA, SECS/GEM, IPC‑CFX‑2591, IPC‑HERMES‑9852
Yield Management: YMS 4.0 (optional)

Optional Components

• Digital testing: non‑multiplexing 1:1 per‑pin architecture with independent per‑pin level setting
• Serial Test Controller (STC) programming support
• DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3 A, -12 V@1 A, 24 V@3 A
• Programmable power (2 CH): 0.2–3 V@2 A max or 3–24 V@3 A max
• DPS programmable DUT supplies: DPS3514 (30 V/5 A/100 W per channel, 4 CH per DPS) or DPS3122 (30 V/10 A/200 W per channel, 2 CH per DPS)
• BScan features: Chain, Cluster, Virtual Nails, Virtual Chain and IEEE1149.6 tests
• Up to 8 high‑speed serial ports, on‑board flash and EEPROM

System Requirement
Power: 200–240 V, single phase, 50/60 Hz, 3 kVA
Power features: Auto detection of mains voltage and earth ground
Air: Dry air 4–8 kg/cm²

Dimensions
WxDxH: 900 x 1160 x 1860 mm
Weight: 440 kg

Technical specifications

• Model: TR5001 SII QDI
• Analog/hybrid test points: 1 Core = 3,456 (opt. 4,480); 2 Cores = 3,328 (opt. 4,096); 4 Cores = 4,096
• Operating System: Microsoft® Windows 11
• Fixture Type: Offline with long‑life Quick Disconnection Interface
• Standard analog test hardware: 6‑wire matrix, programmable AC/DC high voltage/current sources, AC/DC voltage & DC current measurement, R/L/C measurement, TestJet open‑circuit detection, Arbitrary Waveform Generator
• Industry 4.0 support: SMEMA, SECS/GEM, IPC‑CFX‑2591, IPC‑HERMES‑9852; optional YMS 4.0
• DUT power supplies (std/opt): 5 V@3 A, 3.3 V@3 A, 12 V@3 A, -12 V@1 A, 24 V@3 A; programmable power and DPS module options as specified
• System power: 200–240 V, single phase, 50/60 Hz, 3 kVA
• Air: Dry air 4–8 kg/cm²
• Machine dimensions (WxDxH): 900 x 1160 x 1860 mm
• Machine weight: 440 kg
