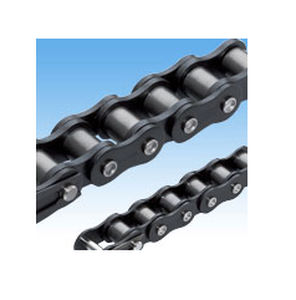

Power transmission chain RF-B-LM-1 series

drivesteelroller

Lambda Chain compatible with ISO606 standard B series. It is possible to replace existing BS standard roller chains. - Improved wear life Tsubaki's unique bearing materials, material properties, and lubricating oil have enabled us to successfully improve wear life. In addition, we have established specifications that minimize extreme variations in quality and ensure stable performance. ・Simple cut and connect Uses a "center sink pin" that eliminates the need to grind down the pin when disassembling the chain. "Simple cut and connect" is possible, reducing the amount of work required cut and connect the chain. - Complete kW ratings table makes selection easy We provide a complete kW ratings table to help you select the best chain for your equipment. - Uses NSF H1* Compliant lubricant, which can also be used in Food processing machinery. *NSF H1 is a standard set by NSF that states "lubricants that can be used in areas where accidental contact with food may occur." *The thickness of the inner plate is increased by one size to ensure strength such as tensile strength. Therefore, the pin length is longer than that of general-purpose roller chains, so please check for interference with equipment when replacing It is necessary to select a sprocket specification that corresponds to the customer's operating environment and chain specifications. For Lambda Chain BS DIN standard, Hardening the tooth tips of large tooth count sprockets can extend their lifespan.
