Double chain RS-LMDS-2 seriespower transmissiondrivesteel
Add to favorites
Compare this product
Characteristics
- Type
- power transmission, drive
- Material
- steel
- Configuration
- roller, double
- Domain
- cost-effective
- Chain pitch
Min.: 12.7 mm
(0.5 in)Max.: 50.8 mm
(2 in)
Description
Ideal for replacing RS roller chain Double Strand
- This chain has the same transverse pitch as a double-strand RS roller chain, making it possible to use double-row RS sprockets.
(Standard Lambda double-strand sprockets are required.)
1. General-purpose RS sprockets can be used
RS Double Strand Compatible Lambda Chain has the same transverse pitch as RS roller chain. Standard double-strand sprockets can be used, which is also cost-effective.
2. Transmission capacity is improved by approximately 20% compared to conventional specifications (multiple strand factor 1.7)
It is necessary to select a sprocket specification that corresponds to the customer's operating environment and chain specifications.
For RS Double Strand Compatible Lambda Chain please use standard steel RS sprockets.
Catalogs
Other Tsubakimoto Chain products

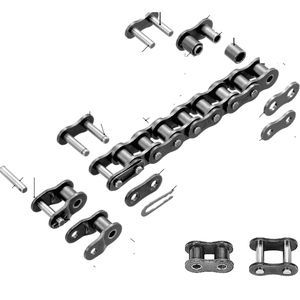

Lube-free drive chain
