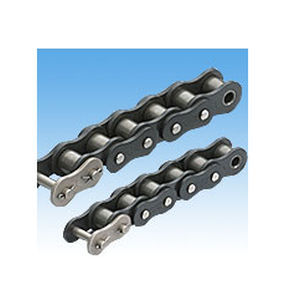

Lube-free chain RS-LMCCU-1 series

power transmissiondrivesteel

This is an Lube-free chain that can bend widely in the lateral direction. This Lambda Chain has a unique pin and bushing structure and a large clearance between the plates, allowing it to bend significantly laterally. ・Easy curved driving Curved transmission is possible by using RS type sprockets. ・Long life without lubrication Curved Lambda chain can be used for a long time even Lube-free thanks to the effect of special oil-impregnated bush. - Uses NSF H1* Compliant lubricant, which can also be used in Food processing machinery. *NSF H1 is a standard set by NSF that states "lubricants that can be used in areas where accidental contact with food may occur." ・Operating temperature It can be used in temperatures ranging from -10°C to 150°C. ・Basic structure *The thickness of the inner plate is increased by one size to ensure strength such as tensile strength. Therefore, the pin length is longer than that of general-purpose roller chains, so please check for interference with equipment when replacing. It is necessary to select a sprocket specification that corresponds to the customer's operating environment and chain specifications. Use standard steel RS sprockets with Curved Lambda chain.
