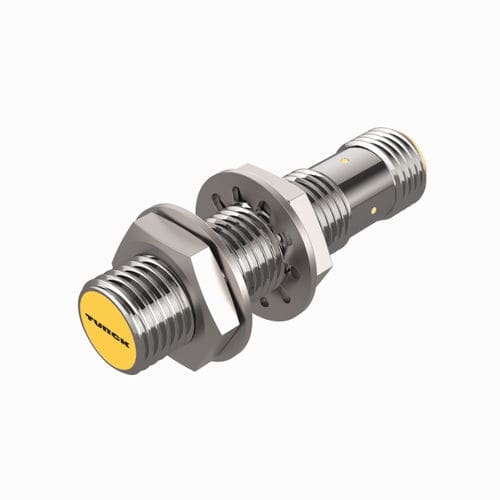

Cylindrical distance sensor BI3-M12-IOLU69X2-H1141inductiveanalogIO-Link
Add to favorites
Compare this product
Characteristics
- Configuration
- cylindrical
- Technology
- inductive
- Output
- analog, IO-Link, 4-wire
- Electrical connection
- M12 connector
- Protection level
- IP67
- Range
Min.: 0 mm
(0 in)Max.: 3 mm
(0 in)
Description
With Analog Output and IO-Link Communication
M12 × 1 threaded barrel
Chrome-plated brass
Configuration and communication via IO-Link v1.1 or standard I/O
Adjustable distance value in 12-bit IO-Link process data
Switchpoint configurable via two teach points
Switching output freely configurable
Identification via 32-byte memory
Temperature monitoring with adjustable limits
4‐wire, 15…30 VDC
Analog output, 0…10 V (2…10 V parameterizable)
M12 × 1 connector
Country of origin - DE
Weight - 36 g
Technical Data
Design - Threaded barrel
Construction size - M12 x 1
Measuring range - 0.2…3 mm
Mounting conditions - Flush
Operating voltage - 15…30 VDC
Output function - PNP/NPN, analog output
Voltage output - 0…10 V
Communication protocol - IO-Link
Electrical connection - Connector, M12 × 1
Housing material - Metal, CuZn, Chrome-plated
