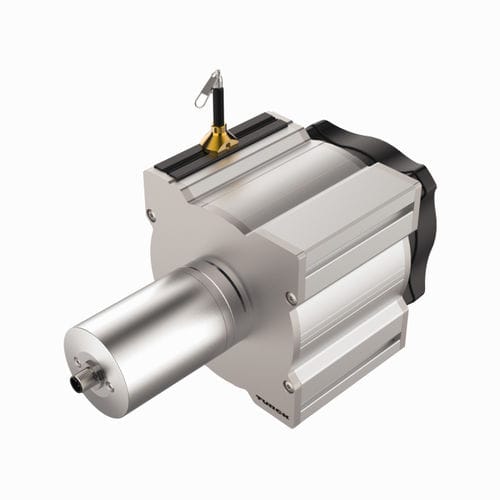

Draw-wire position sensor DW20000-135-7E-H1441
non-contactpotentiometeranalog output

Draw-wire position sensor - DW20000-135-7E-H1441 - TURCK - non-contact / potentiometer / analog output
Draw-wire position sensor - DW20000-135-7E-H1441 - TURCK - non-contact / potentiometer / analog output
Draw-wire position sensor - DW20000-135-7E-H1441 - TURCK - non-contact / potentiometer / analog output - image - 2
Add to favorites
Compare this product
Go to the TURCK website for more information

Characteristics

Type
draw-wire
Contact / non-contact
non-contact
Technology
potentiometer
Output signal
analog output
Protection class
IP65
Measuring range

20,000 mm
(787.4 in)

Linearity

0.1 %

Supply voltage

Max.: 30 V

Min.: 12 V

Ambient temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Description

Measuring range up to 20000mm M12 connector Protection class: IP65 (Encoder) Analog output, 4…20 mA Supply voltage 12…30 VDC Country of origin - DE Weight - 3820 g Technical Data Design - Draw Wire Measuring range - 20000 mm [787.40 in] Operating voltage - 12…30 VDC Output function - Analog output Current output - 4…20 mA Electrical connection - Connector, M12 × 1 Housing material - Titanium anodized aluminium Ambient temperature - -20…+60 °C
