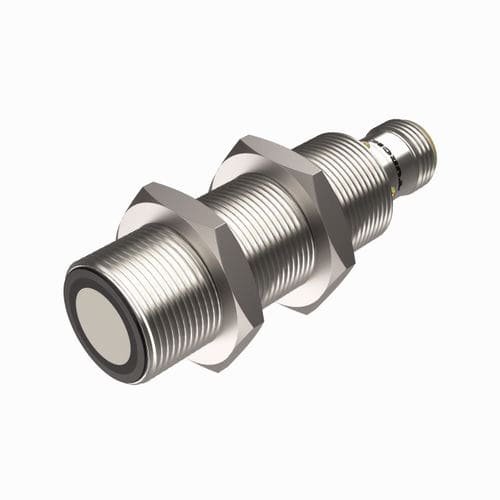

Diffuse reflective ultrasonic sensor RU100U-M18M-AP8X2-H1151
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse reflective
Description
Smooth sonic transducer face
Cylindrical housing M18, potted
Connection via M12 x 1 male
Temperature compensation
Blind zone: 15 cm
Range: 100 cm
Resolution: 1 mm
Aperture angle of sonic cone: ±16 °
PNP switching output
NO/NC programmable
IO-Link
Country of origin - DE
Weight - 72 g
Technical Data
Function - Proximity switch
Operating mode - Time-of-Flight
Design - Threaded barrel
Construction size - M18 x 1
Radiation direction - straight
Range - 150…1000 mm
Resolution - 1 mm
Operating voltage - 15…30 VDC
Switching element function - NO/NC
Output function - PNP
Communication protocol - IO-Link
Electrical connection - Connector, M12 × 1
Housing material - Metal, CuZn, Nickel Plated
Ambient temperature - -25…+70 °C
