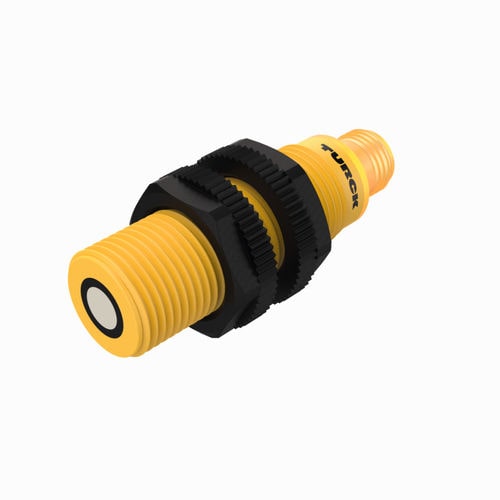

Diffuse reflective ultrasonic sensor RU50U-S18-AP8X-H1141
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse reflective
Description
Smooth sonic transducer face
Cylindrical housing S18, potted
Connection via M12 × 1 male connector
Teach range adjustable via adapter
Temperature compensation
Blind zone: 5 cm
Range: 50 cm
Aperture angle of sonic cone: ±20 °
PNP switching output, NO contact
Switching range adjustable
Country of origin - DE
Weight - 39 g
Technical Data
Function - Proximity switch
Operating mode - Time-of-Flight
Design - Threaded barrel
Construction size - M18 x 1
Radiation direction - straight
Range - 50…500 mm
Resolution - 0.2 mm
Operating voltage - 15…30 VDC
Switching element function - NO contact
Output function - PNP
Electrical connection - Connector, M12 × 1
Housing material - Plastic, LCP, Yellow
Ambient temperature - -20…+50 °C
