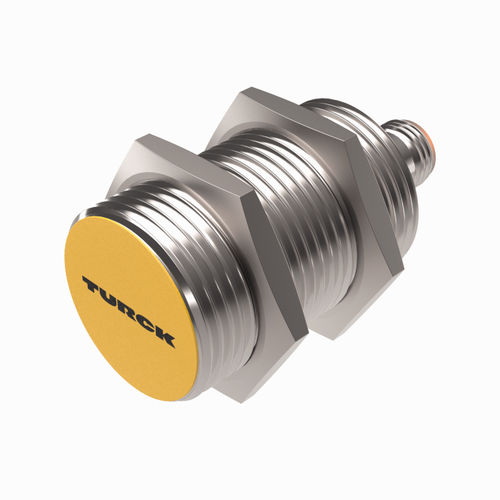

Cylindrical distance sensor BI20U-M30-IOL6X2-H1141
inductiveIO-Link4-wire

cylindrical distance sensor
cylindrical distance sensor
cylindrical distance sensor
Add to favorites
Compare this product


Characteristics

Configuration
cylindrical
Technology
inductive
Output
IO-Link, 4-wire
Electrical connection
M12 connector
Protection level
IP68
Other characteristics
non-contact
Range

20 mm
(1 in)

Description

IO-Link Communication and Configuration M30 × 1.5 threaded tube Chrome-plated brass Factor 1 for all metals Resistant to magnetic fields Large switching distance DC 4-wire, 10…30 VDC M12 x 1 connector Configuration and communication via IO-Link v1.1 or via standard I/O Electrical outputs independently configurable Switching distance can be parametrized per output and hysteresis Identification via 32-byte memory Temperature monitoring with adjustable limits Various timer and pulse monitoring functions Country of origin - DE Weight - 126 g Technical Data Design - Threaded barrel Construction size - M30 x 1.5 Rated switching distance - 20 mm Mounting conditions - Flush Operating voltage - 10…30 VDC Output function - NO/NC, PNP/NPN Communication protocol - IO-Link Switching frequency - 0.50 kHz Electrical connection - Connector, M12 × 1 Housing material - Metal, CuZn, Chrome-plated Ambient temperature - -25…+70 °C
