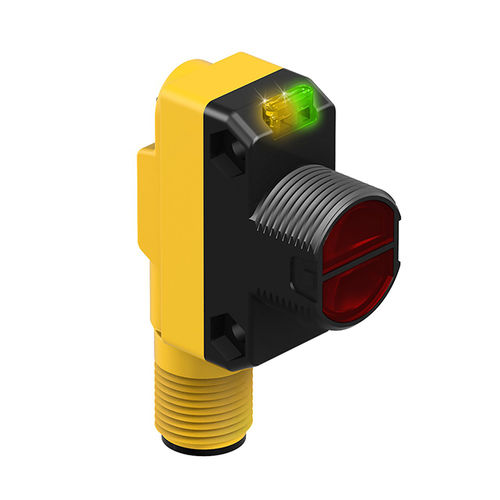

Retroreflective sensor photoelectric sensor QS18EK6XLPCQ8rectangularLEDplastic
Add to favorites
Compare this product
Characteristics
- Sensing mode
- retroreflective sensor
- Housing
- rectangular
- Type of beam
- LED
- Other characteristics
- plastic, polarized
- Maximum range
Min.: 50 mm
(2 in)Max.: 3,000 mm
(118.1 in)
Description
Photoelectric Sensor
Retroreflective Sensor with Polarizing Filter for Clear Object Detection
Male M12 × 1; 4-pin
Protection class IP67
LED, all-round visible
Coaxial optics
Sensitivity adjusted via teach button
Operating voltage: 10…30 VDC
1 × PNP/NPN switching output with IO-Link communication
1 × PNP/NPN switching output
Technical Data
Function - Retroreflective Sensor
Operating mode - Polarized (coaxial)
Design - Rectangular with thread
Construction size - 31 x 15 x 35 mm, QS18
Light type - Red polarized
Operating voltage - 10…30 VDC
Output function - NO/NC, PNP/NPN
Communication protocol - IO-Link
Electrical connection - Connector, M12 × 1
Housing material - Plastic, ABS
Ambient temperature - -40…+70 °C
Protection class - IP67
Special features - Clear object detection, keep/defer
