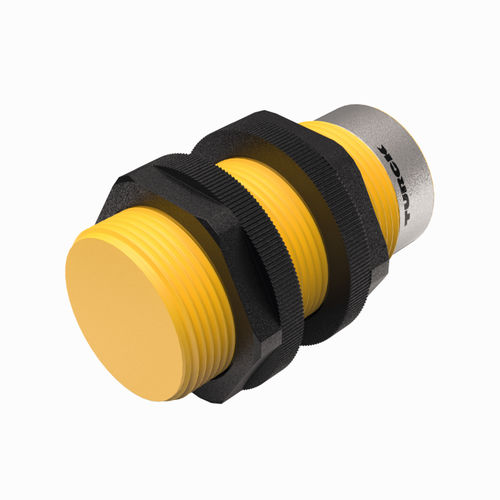

Capacitive proximity sensor BCE10-S30-VP6X-H1141cylindricalM12M30
Add to favorites
Compare this product
Characteristics
- Technology
- capacitive
- Shape
- cylindrical
- Diameter
- M12, M30
- Output signal
- PNP, 4-wire
- Supply voltage
- DC
- Mounting
- threaded
- Material
- plastic
- Protection level
- IP65
- Length
60 mm
(2 in)- Measuring range
15 mm
(0.59 in)- Process temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
With Potentiometer
M30 × 1.5 threaded barrel
Plastic, PA12‐GF30
Fine adjustment via potentiometer
DC 4-wire, 10…30 VDC
Complementary contact, PNP output
M12 × 1 connector
Country of origin - DE
Weight - 70 g
Technical Data
Design - Threaded barrel
Construction size - M30 x 1.5
Rated switching distance - 15 mm
Operating voltage - 10…30 VDC
Output function - Complementary contact, PNP
Electrical connection - Connector, M12 × 1
Housing material - Plastic, PA6-GF30
Ambient temperature - -10…+60 °C
