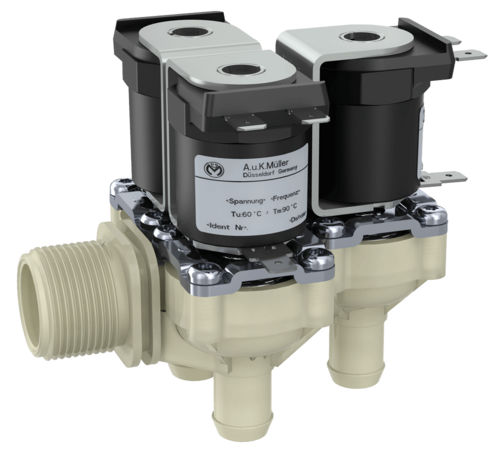

Servo-assisted solenoid valve 01.010.315
2-wayNCfor potable water

servo-assisted solenoid valve
servo-assisted solenoid valve
servo-assisted solenoid valve
servo-assisted solenoid valve
Add to favorites
Compare this product


Characteristics

Control
servo-assisted
Ports/positions
2-way
Function
NC
Medium
for hot water, for potable water, for food
Body
polyamide, IP65, IP67, IP68, stainless steel
Process connection
G 3/4
Other characteristics
safety, for chemicals, beverage
DN

10 mm
(0.394 in)

Voltage

Max.: 240 V

Min.: 12 V

Temperature

Max.: 90 °C
(194 °F)

Min.: 5 °C
(41 °F)

Pressure

Max.: 10 bar
(145 psi)

Min.: 0.2 bar
(2.9 psi)

Description

2/2-way solenoid valve of nominal diameter DN 10 for use with cold and heated potable water and physically and chemically similar media. The valve is servo-controlled and normally closed (NC). Valves of this design are three-chamber valves with the inlet ninety degrees to the outlet and can be manufactured with various connections. Coil systems for common voltage and frequency ranges are available. Electrical operating safety is achieved by insulation class F and can be supported by an integrated protective circuit. By using high quality insulation materials, continuous duty (100 % ED) at higher medium temperatures is possible. The glass fibre reinforced polyamide valve body persists hot water. Protection against corrosion of inner parts exposed to the medium is achieved by using stainless steel. Applications Steam appliances Dental appliances Hot / cold drink dispensers Industrial appliances Air conditioning Agricultural implements Cleaning systems Temperature equalisers Dish washers Ice machines Washing machines Water treatment installations Characteristics Servo-controlled Solenoid replaceable while medium circuit remains untouched, solenoid rotatable 4 x 90° Similar hydraulic performance for AC or DC types Optimized water hammer characteristic by low noise emission according to EN 60730 Long term performance capability High operating safety through the use of high quality materials and 100% final testing of the products Technical data Fitting position any, preferably with coil upwards Media Cold and heated potable water and physically and chemically similar media
