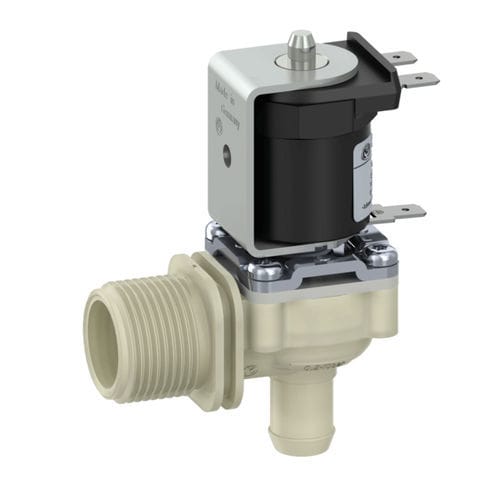

Servo-assisted solenoid valve 01.010.114

2-wayNCfor hot water

This 2/2-way solenoid valve has a 10 mm orifice and is designed for use with potable water and physically and chemically similar media. It is suitable for use in low pressure applications such as controlling flow from a tank and can handle a maximum pressure head of 60 cm. The valve is direct acting in operation, normally closed (NC) and the internal plunger assembly is separated from the medium. These valves have a single body chamber. Coils are available in all common voltage and frequency ranges. The electrical operational safety is guaranteed by the electrical insulation coordination, which corresponds to the VDE 110 regulations. The manufacturing process includes a 100% electrical safety test in accordance with the VDE 0631 Part 1000 regulations. The use of high quality insulation materials enables a 100 % duty cycle is be achieved, even at high medium temperatures. For example, the valve body is reinforced with glass fibre to enable use with hot water. Protection against corrosion of inner parts exposed to the medium is achieved by a separating membrane. Applications Dosage systems low pressure applications Cleaning systems Industrial appliances Characteristics Direct acting internal plunger assembly medium separated low pressure range of up to 60 mbar Solenoid replaceable while medium circuit remains untouched, solenoid rotatable 4 x 90° Long term performance capability High operating safety through the use of high quality materials and 100% final testing of the products Technical data Coil connections Flat Tabs 6,3 x 0,8 mm according to EN 60529 (IP 00) Plug Socket according to EN 175301-803 (IP65) Insulation class H according to EN 60730
