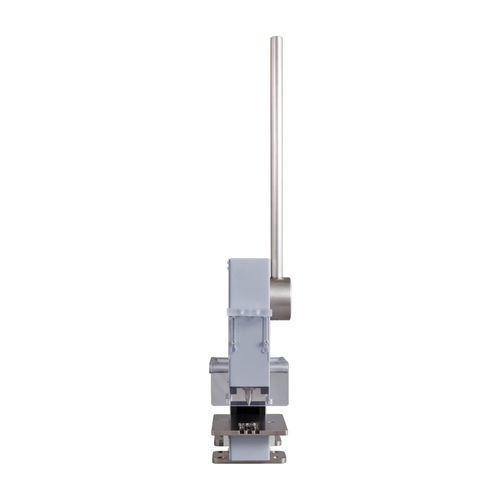

Manual punching machine HDT02-UST

lever-operatedpunching

Overview
The HDT02-UST is a manual table-mounted hard drive puncher by Ureach designed to permanently disable 3.5" and 2.5" HDDs and various SSDs. It operates without electricity and includes a debris shield for operator protection.

Features

• Rapid physical destruction: renders data unrecoverable in seconds.
• Manual lever operation: simple mechanical action, no power required.
• Compact, table-mounted design: suitable for office or secure-room placement.
• Supports multiple media types: 3.5" HDD, 2.5" HDD and SSD (SSD module optional for specific SSD/M.2 types).
• User protection: integrated debris shield reduces risk from fragments.

Product Description and Operation
The HDT02-UST uses a manual lever and pressure rod to punch/crush storage media, physically incapacitating platters or memory components to ensure data cannot be recovered. The unit is fixed to a table or bench for stability. An interchangeable SSD-crushing module (sold separately) provides multiple spikes to penetrate SSD form factors. The device is intended for organisations requiring compliant physical destruction of magnetic and solid-state drives.

General (table)
Model: HDT02-UST

Features (table)
Operation Type: Manual lever destruction (no electricity required)
Destruction Result: Storage areas rendered unusable, data unrecoverable
Duty Cycle: Continuous
Destructible Devices: 3.5" HDD / 2.5" HDD / SSD
HDD Height: Up to 3 cm / 1.18" (maximum)
Modular Pin Design: Modular pins for 3.5" HDD (4.7 cm / 1.85"), 2.5" HDD (5.2 cm / 2"), SSD pin optional

Specification (table)
Physical Dimensions (L×W×H): 25 x 14 x 33 cm (10 x 5.5 x 13 in)
Pressure Rod Length: 46 cm (18 in)
Package Dimensions / Weight: 43.5 x 43.5 x 27 cm / 19.5 kg
Package Dimensions / Weight (imperial): 17 x 17 x 11 in / 43 lbs
Temperature: Operating: 5°C ~ 45°C; Non-operating: -20°C ~ 85°C
Humidity: Operating: 20% ~ 80%; Non-operating: 5% ~ 60%

Additional Notes
Optional SSD destruction module available (sold separately). Typical lead time: 5–7 days.

Technical specifications

• Model: HDT02-UST
• Operation type: Manual lever, no power required
• Destructible devices: 3.5" HDD, 2.5" HDD, SSD (optional SSD/M.2 module for some SSD types)
• Destruction result: Storage areas rendered unusable; data unrecoverable
• Duty cycle: Continuous
• Max HDD height supported: up to 3 cm / 1.18"
• Modular pin design: 3.5" pin (4.7 cm / 1.85"), 2.5" pin (5.2 cm / 2"), SSD pin optional
• Physical dimensions: 25 x 14 x 33 cm (10 x 5.5 x 13 in)
• Pressure rod length: 46 cm (18 in)
• Package size / weight: 43.5 x 43.5 x 27 cm / 19.5 kg (17 x 17 x 11 in / 43 lbs)
• Operating temperature: 5°C to 45°C; non-operating: -20°C to 85°C
• Humidity: operating 20%–80%; non-operating 5%–60%
• Debris protection: Shield included
