Ultraviolet flashlight Superlite M05

LEDinspectionportable

Overview

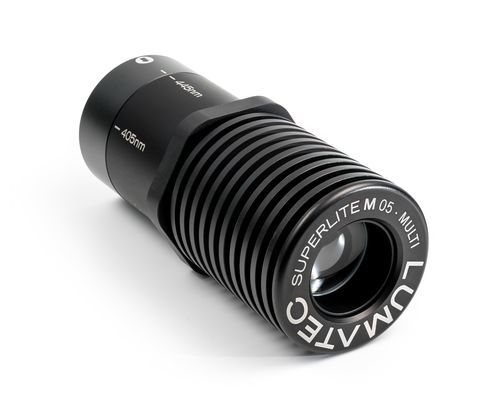

The Lumatec Superlite M05 Multihead integrates up to six different LEDs in a single head to support rapid evidence detection at crime scenes. Wavelengths (365 nm, 390 nm, 405 nm, 445 nm, 530 nm, 620 nm and visible white 400–700 nm) are selected by rotating the head housing. The multihead reduces carrying weight and simplifies handling compared with multiple single-wavelength heads while offering broad spectral coverage.

Main benefits

• Integrates 4 to 6 distinct LEDs in one head with simple wavelength selection by rotation.
• Significantly lighter than multiple single-wavelength heads (single head ≈ 200 g, multihead ≈ 300 g), improving manoeuvrability in low-light operations.
• Hexagonal anti-rolling housing prevents accidental rolling and enables grazing-light positioning close to the ground.
• Twist-proof connection (with Power Pack II) reduces risk of damage from incorrect assembly.
• Optimised ventilation-slot design maintains airflow when used with the M05 belt bag.
• Backward compatible: multihead is compatible with older battery packs.
• Note: single-wavelength heads provide slightly higher output and adjustable light cones; multiheads prioritise operational versatility.

LED output and runtimes (optical power output / runtime)
LED multiheads — optical power output / runtime (modes: 25% / 50% / 100%)
365 nm — 150 mW / 4 hrs | 300 mW / 2 hrs | 600 mW / 1 hr
390 nm — 200 mW / 4 hrs | 500 mW / 2 hrs | 1000 mW / 1 hr
405 nm — 150 mW / 4 hrs | 300 mW / 2 hrs | 600 mW / 1 hr
445 nm — 400 mW / 2 hrs | 600 mW / 1 hr | 1000 mW / 0.5 hr
530 nm — 200 mW / 4 hrs | 300 mW / 2 hrs | 400 mW / 1 hr
620 nm — 200 mW / 2 hrs | 300 mW / 1 hr | 400 mW / 0.5 hr
400–700 nm (white) — 300 mW / 2 hrs | 500 mW / 1 hr | 700 mW / 0.5 hr

Power Pack II / Battery & Charger
The Power Pack II houses the control electronics, a cooling fan and a push-button to switch the lamp and select three intensity levels. The hexagonal design prevents rolling. Suitable for continuous operation with external mains/external charging. Charging status is indicated by an LED. Includes integrated 1/4" UNC threaded hole for tripod mounting and an Anti-Twist Pin for a twist-proof connection to LED multiheads.

Usage notes

• Change wavelengths by rotating the head housing.
• Common multihead configurations: 4, 5 or 6 wavelengths; choose configuration based on application requirements.
• Designed to reduce weight and bulk compared with carrying multiple single-wavelength heads.

Specifications

• Model / Series: Superlite M05
• Product name: Lumatec Superlite M05 Multihead Sets
• Typical configurations: Multihead x4 (365 nm, 405 nm, 445 nm, 620 nm); Multihead x5 (365 nm, 390 nm, 405 nm, 445 nm, 400–700 nm); Multihead x6 (365 nm, 390 nm, 405 nm, 445 nm, 530 nm, 400–700 nm)
• Optical power and runtimes: see LED output and runtimes block above (modes: 25% / 50% / 100%)
• Dimensions (per product / package variation): 17 × 9 × 4 in
• Weight: approx. 3 lbs (multihead with Power Pack)
• Battery Pack: Battery Pack II (integrated control electronics and cooling fan)
• Charger (Mains): input 110–230 V AC, 50–60 Hz — output 5 V, 4 A, 20 W
• Charger (Car): input 12–16 V DC — output 6 V, 4 A
• Lead time: 7–10 business days
• SKU / product code: SPLM05
• Badges: MADE IN GERMANY; TAA COMPLIANT
