Lamp light source SUPERLITE S04

yellowwhiteblue

Overview

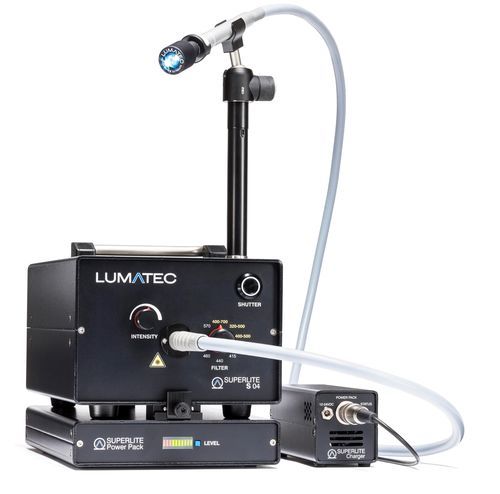

The LUMATEC SUPERLITE S04 is a portable light source engineered for forensic imaging across relevant spectral bands. It provides high‑intensity UV and multiple visible spectral ranges to reveal trace evidence with minimal use of contrast agents. The system can be configured for mains or battery operation and accepts interchangeable light guides for inspection of confined or hard‑to‑reach areas.

Your Benefits at a Glance

• High UV output suitable for forensic trace detection
• Energy-efficient design enabling battery operation
• Reveals traces without powders or chemicals that may affect DNA evidence
• Limited white-light emission to increase contrast
• Wide range of optional accessories for different use cases
• Portable when used with the LUMATEC battery kit and charger
• Light guides provide user protection from direct radiation
• Patented safety switch to prevent inadvertent manual activation
• Low-noise cooling fan
• Slim and flexible light guide variants for confined inspections
• Compatible with multiple light guide connector types

Models & Pricing (unit price USD)
1 | S04 SET | Set SUPERLITE S04 / High Intensity UV-Light source / 110–240V (±10%), 50–60Hz / Lamp: 120W (AC) / 10 filter sets / Lightguide Socket: Lumatec D / with battery and charger (not including lightguide) | $9,290
2 | S04 | SUPERLITE S04 / High Intensity UV-Light source / 110–240V (±10%), 50–60Hz / Lamp: 120W (AC) / 10 filter sets / Lightguide Socket: Lumatec D / ready for battery operation / black housing (not including lightguide & battery kit) | $7,570
3 | LIGHTGUIDE | Liquid lightguide / Series 300 / Industrial Version / Ø5mm x 1800mm / LEN: Lumatec D, sliding contacts / LEX: Lumatec F, safety hand switch / Aluminum/PVC grey sheathing | $910
4 | BATTERY KIT | Battery pack (Li-ion) + Charger for SUPERLITE S04 | $2,530

Specification — Light Source
Power supply: 100–240 VAC
Power consumption: 150 W
Internal control voltage: 24 VDC
Dimensions (W × H × D): 175 × 140 × 260 mm
Weight: 3.8 kg

Specification — Battery
DC output voltage: 34 VDC
Dimensions (W × H × D): 175 × 50 × 260 mm
Weight: 2.4 kg

Optical Performance / Output (summary)
The SUPERLITE S04 delivers multiple spectral ranges (UVA, violet, blue, turquoise, green, yellow, etc.) with concentrated UV output optimized for forensic detection. Measured optical data include optical power (mW) and power density (mW/cm²) across spectral bands, with peaks distributed approximately between 200–800 nm. The spectral configuration is tailored to common forensic fluorescence and reflectance tasks.

Accessories & Options

• Various light guides, including slim and flexible options
• Battery kit and charger for portable operation
• Multiple filter sets (10 filter sets included in S04 SET)
• Lightguide socket types: Lumatec D (LEN) and Lumatec F (LEX)

User Manual & Support
The user manual titled "LUMATEC SUPERLITE THE PORTABLE LIGHT SOURCE FOR DIVERSE SPECTRA" is provided in product resources. Technical support and documentation are available on request.

FAQ (selected)

• Q: What is the SUPERLITE S04 used for? A: Designed for forensic applications to detect trace evidence across relevant spectral ranges.
• Q: Can it be used outside a completely dark environment? A: Yes — the device's UV output enables detection even in environments that are not fully dark.
• Q: Does it require powders or chemicals for detection? A: No — it can reveal traces without powders or chemical treatments that could compromise DNA evidence.
• Q: Does the SUPERLITE S04 support portable operation? A: Yes — portable operation is available when used with the battery kit and charger.

Caractéristiques / spécifications techniques

• Brand: LUMATEC
• Model: SUPERLITE S04
• SKU: SPLS04
• Power supply: 100–240 VAC
• Power consumption: 150 W
• Internal control voltage: 24 VDC
• Lamp rating (typical configuration): 120 W (AC)
• Filter sets: 10 (included in S04 SET)
• Lightguide socket: Lumatec D (LEN) / Lumatec F (LEX) compatibility
• Dimensions (light source): 175 × 140 × 260 mm
• Weight (light source): 3.8 kg
• Battery DC output voltage: 34 VDC
• Dimensions (battery): 175 × 50 × 260 mm
• Weight (battery): 2.4 kg
• Portable operation: supported with battery kit and charger
• Features: high UV output, energy efficiency, quiet fan, patented safety switch, optional accessories
