Reporting software URaze500

data archivingproduct documentationstorage

Overview
U-Raze is a portable, USB-based software solution designed for securely erasing data from storage devices. Unlike traditional deletion methods that may leave recoverable traces, U-Raze ensures complete and irreversible data removal. License Duration: 1 USB, unlimited use for 1 year upon activation.

Features

• USB-Based Operation: Runs directly from a USB flash drive; no installation required, portable across systems without leaving software traces.
• Secure Data Erasure: Employs 13 data-wiping algorithms to permanently remove files so deleted information cannot be recovered by forensic tools.
• Cross-Platform Compatibility: Can erase storage devices regardless of host operating system; works with SATA, NVMe, eMMC, or USB drives installed or plugged into the computer.

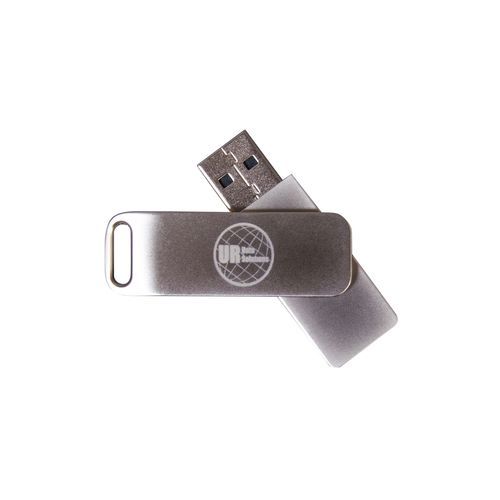

• Compact and Portable Design: Sleek metal swivel chassis for protection and rigidity.
• Log Report Functionality: Saves task logs as PDF files on the USB device (records date/time, erasure method, user, result, etc.).
• Ease of Use: User-friendly interface allowing secure deletion with minimal technical knowledge.
• Eco-Friendly Packaging: All packaging made from 100% recycled material.

13 Erasure Methods

• Secure Erase
• Sanitize Erase
• Fill with Ones
• Fill with Zeroes
• Fill with Random Numbers
• Fill with Random 3 Times
• DoD 5220.22-M
• DoD 5220.22-M ECE
• NSA 130-1
• NVMe Cryptographic Erase
• RCMP TSSIT OPS-II Method
• HMG IS5 Baseline Method
• HMG IS5 Enhanced Method

Disk Explorer
Displays any detected disk or device and lists connected drives and ports (shows drive model and available capacity).

Disk Viewer
Allows viewing contents of a selected drive before or after tasks (hex viewer and file inspection to confirm data presence/removal).

User Profile
Set a username during use to indicate who is responsible for the performed tasks; this user information is recorded in log reports.

Log Report Viewer
List and view all erase task reports stored on the USB device; reports saved as PDF include examiner, method, date/time, target device, and result status.

System Behavior and Notes

• If a drive is in a frozen state, reconnection or system sleep/wake can make it available for secure erase.
• Not supported on Apple Silicon (M1 or newer); requires Intel-based Macs.

Technical specifications

• Model: URaze500
• SKU: URaze500
• Operation type: USB flash drive startup (runs from USB device)
• O/S support: Built-in OS on the USB; utilizes BIOS or UEFI startup
• Compatible devices: SATA and IDE HDDs; SATA and NVMe SSDs; eMMC storage; USB flash drives and external USB storage devices
• Processor: 1 GHz or faster x86-64 processor required on host
• Memory (RAM): Minimum 2 GB
• Display: Monitor with at least 1024×768 resolution
• USB port: USB 2.0 or higher required
• Physical dimensions (L×W×H): 67 mm × 19 mm × 6 mm (2.63 in × 0.75 in × 0.25 in)
• Product weight: 0.03 kg (0.06 lbs)
• License duration: 1 year (1 USB, unlimited use while active)
• License usage: Unlimited while active on the licensed USB
• Lead time: 7–10 business days
