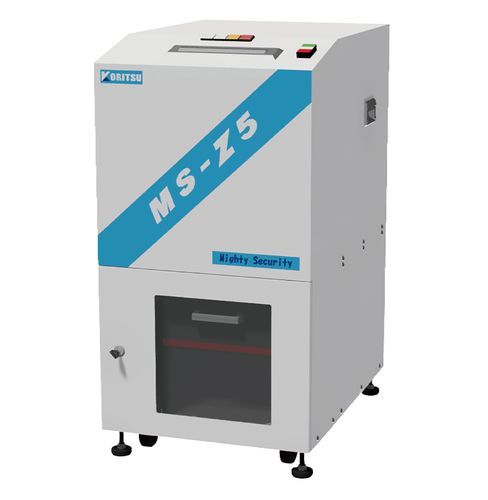

Waste mill MS-Z5

hammervertical115V single phase

Overview
The MS-Z5 is a security hammer mill designed to physically destroy confidential electronic media. Its compact, office-compatible footprint supports adjustable destruction sizes via replaceable discharge screens, enabling configurations from high-throughput bulk processing to fine-particle, high-security destruction. The machine uses proven crusher/hit-impact technology to pulverize hard media in a single pass.

Key Functional Features

• High-impact hammer mill system (crushing by impact) suitable for hard media: HDDs, SSDs, flash memory, PCBs, and optical discs.
• Replaceable, screen-based size control at the discharge — particle size determined by installed screen; multiple screen diameters available to balance security and throughput.
• Transparent dust bin and cabinet door for visual verification of destruction progress.
• Lockable dust bin compartment containing the main power switch to prevent unauthorized access and operation.
• Automatic protections: overcurrent protection (automatic circuit trip) and automatic shutdown on overheating or sustained overcurrent beyond motor/inverter rating.
• Safety interlocks: instant stop if dust bin door or maintenance covers are opened.
• Automatic stop when dust bin reaches full capacity (dust bin full sensor).
• Motor overload indicator with recommended operator feeding procedure to avoid excessive load.
• Equipped with casters for mobility and anti-tipping adjusters to secure the machine in place.

How the Physical Destruction Works
The MS-Z5 uses rapidly rotating hammers to crush and pulverize media by high-speed impact rather than cutting. A screening element inside the crushing chamber retains material until particles are small enough to pass through the screen. This allows bulk feeding of fragile impact-prone media (e.g., optical discs, flash memory) for high throughput while permitting adjustable security by changing screens.

Smart, Screen-Based Size Control
The discharge screen is user-replaceable, enabling quick adjustment of destruction particle size to meet security requirements. Larger screen openings increase throughput (lower security); smaller openings produce finer particles (higher security). Additional screens can be purchased separately to adapt to future needs without replacing the machine.

Maintenance & Reliability
The MS-Z5 has a simple mechanical structure designed for minimal downtime. Primary wear parts are lightweight and user-replaceable with common tools. Replacement frequency depends on media type, volume, and chosen screen size; heavy-use operations typically replace internal hammers modestly (often 1–2 times per year). Most maintenance tasks can be performed on-site.

Destructible Media (examples)

• HDD / SSD (note: excludes 3.5" and server-used 2.5" HDDs)
• Circuit boards / PCBs
• CD / DVD / Blu-ray
• SIM cards
• EMV credit cards and magnetic-stripe cards
• USB / SD / CF flash media
• Tablets and cell phones (remove lithium‑ion batteries before processing)

Installation & Operational Notes

• Indoor use only. Operating ambient temperature: 0℃ to 40℃.
• Power: 110 V, single-phase, 15 A.
• Maximum input piece size approximately 100 mm × 100 mm — remove large metal heatsinks or thick metallic components before feeding. Enterprise SSDs thicker than 9.5 mm require removal of outer casing/heatsink; feed only the internal PCB.
• Always remove lithium‑ion batteries prior to destruction.
• Base machine price includes one selected screen; additional screens sold separately. Certain screen sizes may be incompatible with specific media types.

Safety & Protection

• Lockable dust bin compartment prevents unauthorized access and contains the main power switch to avoid unauthorized operation.
• Automatic safety interlocks stop the machine instantly if covers or the dust bin door are opened.
• Overcurrent and overheating protection will automatically shut down the machine to prevent damage.
• Dust bin full sensor triggers automatic stop.

Technical specifications (table view)
Model: MS-Z5
Dimensions: 20"W × 27.8"D × 37.5"H
Weight: 330 lbs (150 kg)
Motor: 1 HP (0.75 kW)
Power: 110 V, 1‑Phase, 15 A
Inlet Dimensions: 7"W × 1.2"D
Destructible Media: HDD/SSD (exclude 3.5" and server-used), circuit boards, CD/DVD/BD, SIM card, EMV credit cards/magnetic stripe cards, USB/SD/CF, tablets/cell phones
Installation site: Indoors (operating ambient temperature 0℃ to 40℃)
Available Screen Sizes: φ10 mm, φ15 mm, φ20 mm, φ25 mm, φ35 mm, φ50 mm
Security levels (ISO/IEC 21964): HDD ≤ 2,000 mm² (H-4); SSD/Flash ≤ 160 mm² (E-3); CD/DVD/Blu-ray ≤ 160 mm² (O-3); Credit & Smart Cards ≤ 160 mm² (T-4)
Typical Throughput: 2.5" SSD (E-3): ~240 seconds per drive; 2.5" HDD (H-4): ~30 seconds per drive
Included Accessories: User Manual, Standard Maintenance Tools

Technical specifications (list)

• Model: MS-Z5
• Dimensions: 20"W × 27.8"D × 37.5"H
• Weight: 330 lbs (150 kg)
• Motor: 1 HP (0.75 kW)
• Power: 110 V, 1‑Phase, 15 A
• Inlet Dimensions: 7"W × 1.2"D
• Available Screen Sizes: φ10 mm, φ15 mm, φ20 mm, φ25 mm, φ35 mm, φ50 mm
• Security levels (ISO/IEC 21964): HDD H-4 (≤ 2,000 mm²); SSD/Flash E-3 (≤ 160 mm²); CD/DVD/BD O-3 (≤ 160 mm²); Card T-4 (≤ 160 mm²)
• Typical Throughput: 2.5" SSD ~240 s; 2.5" HDD ~30 s
• Destructible media examples: consumer 2.5" HDD/SSD supported with limitations, circuit boards, optical discs, SIM, USB/SD/CF, tablets/phones (remove batteries)
• Included accessories: User Manual, Standard Maintenance Tools
• Designed for indoor operation (0℃ to 40℃)
