Linear tray sealer TSA 680 P
automatichigh-speedfor the food industry

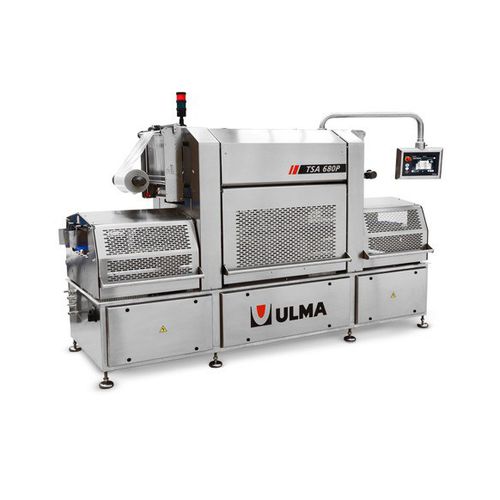

Linear tray sealer - TSA 680 P - ULMA Packaging - automatic / high-speed / for the food industry
Linear tray sealer - TSA 680 P - ULMA Packaging - automatic / high-speed / for the food industry
Linear tray sealer - TSA 680 P - ULMA Packaging - automatic / high-speed / for the food industry - image - 2
Linear tray sealer - TSA 680 P - ULMA Packaging - automatic / high-speed / for the food industry - image - 3
Linear tray sealer - TSA 680 P - ULMA Packaging - automatic / high-speed / for the food industry - image - 4
Linear tray sealer - TSA 680 P - ULMA Packaging - automatic / high-speed / for the food industry - image - 5
Linear tray sealer - TSA 680 P - ULMA Packaging - automatic / high-speed / for the food industry - image - 6
Add to favorites
Compare this product

Characteristics

Type
linear
Operational mode
automatic
Other characteristics
high-speed, for the food industry, with modified atmosphere packaging, for trays, multi-line
Throughput

Min.: 25 p/min

Max.: 150 p/min

Description

Overview
Automatic traysealer for regular preformed trays. Designed for cut & seal and MAP applications. Up to 25 cycles/min for standard operation; software-assisted continuous motion can enable higher throughput depending on format.

DESCRIPTION
Automatic tray sealing machine suitable for different tray materials and printed top films. The CMC (Continuous Motion Control) software optimizes production by precise tray positioning and motion control, enabling speeds up to 150 trays/min depending on tray type and dimensions. Machine designed for integration into medium-to-high production lines where accurate tray handling is required. Sealing can be configured as single-line or double-line according to formats.

DESIGN HIGHLIGHTS
  • Sealing force optimized for barrier and standard films.
  • Robust industrial construction.
  • User-oriented controls for production lines.
  • Reduced maintenance needs through centralized systems.
  • Versatility for multiple tray formats and materials.

FUNCTIONAL FEATURES
  • Energy efficiency.
  • High production performance: up to 25 cycles/min in standard configuration.
  • Quick and easy format changeover.

TECHNICAL FEATURES
  • Model: TSA 680 P.
  • Sealing area: 330 x 680 mm.
  • Maximum tray height: 80/120 mm.
  • Die lifting system by servomotor.
  • Arm opening/closing and die transfer by servomotor.
  • Tool-free die change.
  • Tray feeding and positioning by belt with drum-motor.
  • Reel holder with pneumatic grip.
  • Film end and break detectors.
  • Motorized film tension control.
  • Centralized lubrication system.
  • Control panel UPC: Industrial PC with 7" touch screen (Opt. 10").
  • Access protection with 3 authorization levels.
  • Ethernet interface and integrated maintenance program (event management).

MOST COMMON OPTIONS
  • Tray denester and loading modules.
  • Checkweigher diverting systems.
  • Single-blade die for minimum film scrap; cut-inside and/or cut-outside dies.
  • MAP gas flushing systems.
  • Die holder trolley and accumulator tables.
  • Tray convergers and end-of-line integration.
  • Coding, printing, inline film perforation (laser) and metal detectors.
