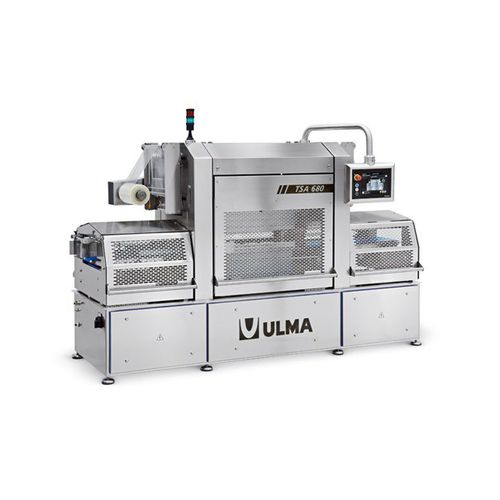

Automatic tray sealer TSA 680

for traysvacuummulti-line

Overview
Up to 23 cycles/min in cut & seal and up to 20 cycles/min in MAP. Automatic traysealer for regular preformed trays. Supports Modified Atmosphere Packaging (MAP), vacuum and skin packaging. Tray transport by arms. Suitable for integration into medium-high production lines where precise tray positioning is required.

Description
Automatic traysealer compatible with a wide range of tray materials and printed top films. Sealing configuration can be single-line (one row) or double-line (two rows) depending on tray format. Designed for fast format changeovers and for integration with upstream and downstream modules in automated lines.

Design highlights

• Hygienic design.
• High sealing force.
• Easy cleaning and maintenance access.
• Robust industrial construction.
• User-friendly operation.
• Reduced maintenance costs.
• Versatility for multiple tray formats and materials.

Functional features

• Energy-efficient operation.
• High production performance: up to 20 cycles/min in MAP (up to 23 cycles/min in cut & seal mode).
• Quick and easy format changeover.

Technical features

• Sealing area: 330x680 mm.
• Maximum tray height: 80/120 mm.
• Die lifting and arm movements driven by servomotors.
• Quick die change without tools; die/dome positioning detectors.
• Protection rating: IP65.
• Tray feeding and positioning by belt with drum motor; belt removal without tools.
• Gas pressure control via panel (recordable); gas accumulator tank included.
• Reel holder with pneumatic grip.
• Film end and film break detectors; motorized film tension control.
• Centralized lubrication system.
• Control panel UPC10A-C: 10" touch screen industrial PC; access protection with 3 authorization levels; Ethernet interface; integrated maintenance/event management program.

Most common options

• Tray denester.
• Loading modules and infeed conveyors.
• Dosing and product loading systems.
• Die holder trolley and accumulator table.
• Tray convergers and aligners.
• Coding and printing systems.
• Seal tester (UST) and metal detectors.
• End-of-line integration modules.

Technical specifications

• Model: TSA 680.
• Sealing area: 330x680 mm.
• Max tray height: 80/120 mm.
• Production rate: up to 23 cycles/min (cut & seal) and up to 20 cycles/min (MAP).
• Drive: servomotors for die lifting, arm movement and die transfer.
• Protection: IP65.
• Feeding: belt with drum motor; rapid belt disassembly.
• Gas control and accumulator tank included.
• Control: UPC10A-C 10" touch screen, 3 authorization levels, Ethernet, integrated maintenance program.
