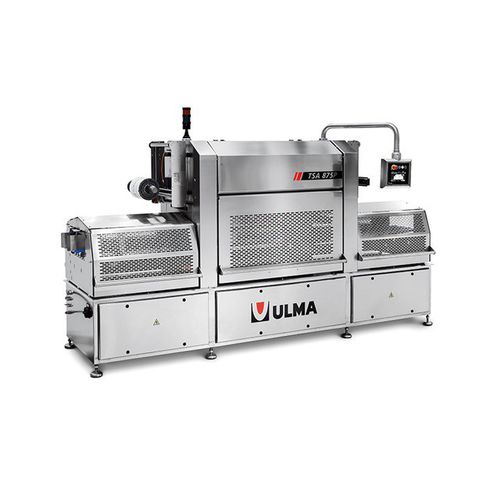

Rotary tray sealer TSA 875 P

automaticfor traysmulti-line

DESCRIPTION
Automatic tray sealer for trays of various materials and formats. Compatible with printed top films and designed for cut & seal or modified atmosphere (MAP) packaging. Equipped with CMC (Continuous Motion Control) software for precise tray positioning and optimized throughput: functional operation up to 25 cycles/min and theoretical CMC speeds up to 150 trays/min depending on tray type and dimensions.

DESIGN HIGHLIGHTS

• Sealing force adapted to application.
• Robust industrial construction for line integration.
• User-oriented interface and easy access for operations.
• Low maintenance design.
• Versatile single-line or double-line configuration.

FUNCTIONAL FEATURES

• Energy-efficient components and controls.
• High production performance: up to 25 cycles/min in standard operation.
• Easy and quick changeover between formats.

TECHNICAL FEATURES

• Sealing area: 330 x 875 mm.
• Maximum tray height: 80 / 120 mm.
• Die lifting and transfer driven by servomotors; die change without tools.
• Arm opening/closing and die transfer by servomotor.
• Tray feeding and positioning by belt with drum-motor.
• Reel holder with pneumatic grip; motorized film tension control; film end and break detectors.
• Centralized lubrication system.
• Control panel UPC: Industrial PC with 7" touch screen (optional 10"); access protection with 3 authorization levels; Ethernet interface; integrated maintenance/event management program.

MOST COMMON OPTIONS

• Tray denester (depiler).
• Loading modules and conveyors.
• Checkweigher diverting systems.
• Single-blade die to minimize film scrap.
• Cut-inside and/or cut-outside dies.
• Modified atmosphere (MAP) by gas flushing system.
• Die holder trolley and die-handling accessories.
• Accumulator table and buffer systems.
• Tray convergers / aligners.
• Coding, printing and marking systems.
• Inline film perforation (laser) systems.
• Metal detectors and end-of-line integration.

TECHNICAL SPECIFICATIONS

• Model: TSA 875 P.
• Sealing area: 330 x 875 mm.
• Maximum tray height: 80 / 120 mm.
• Maximum nominal speed (CMC control): up to 150 trays/min depending on tray type and dimensions.
• Functional production performance: up to 25 cycles/min (configuration dependent).
• Drive systems: servomotors for die lift and transfer; drum-motor driven belt for tray feeding and positioning.
• Reel holder: pneumatic grip; motorized film tension control; film end and break detectors.
• Centralized lubrication and integrated maintenance software in UPC control panel.
