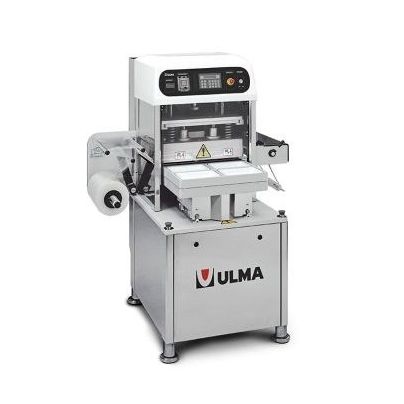

Linear tray sealer SMART 500

semi-automaticvacuumfor trays

Overview
Semiautomatic pre‑industrial traysealer for preformed trays. Suitable for modified atmosphere packaging (MAP) and vacuum packaging. Performance: up to 8 cycles/min in cut & seal mode and up to 5 cycles/min in MAP. Manual tray transport, medium‑high performance level.

Process and cycle

• Place filled trays into the machine cavities.
• Start the cycle by pressing both start buttons simultaneously.
• Sequence of operations:
• Insertion and closure of the cavities.
• Vacuum stage (optional).
• Gas flush stage (optional).
• Sealing of the film to the tray.
• Form cutting of the film.
• Return of cavities and film advance for next cycle.

Operational notes

• Trays lift automatically during cavity return to facilitate unloading and reloading (adjustable timing).
• Fast format changes: tray height change in ~1 minute; full cavity change in < 5 minutes, tool‑free.
• Machine designed to meet CE safety requirements and ISO 9001 quality standards.

Safety features

• Safety covers prevent access to cutting and sealing areas during the cycle.
• Covers equipped with safety switches.
• Two‑hand start: both start buttons must be pressed simultaneously until cavity insertion is completed.
• Control circuits operate at 24 V.

Technical and construction

• Built from corrosion‑resistant / stainless materials for hygiene.
• SIEMENS programmable logic controller (PLC).
• LCD display for parameters, status and error messages.
• Electrical protection rating IP65 for washdown and sanitation.

Ease of operation

• Automatic cycling with programmable memory for up to 20 set‑ups.
• Quick, tool‑free format changes and adjustable tray ejection timing.
• Controls and settings for handling liquids and sauces.

Maintenance

• Minimal maintenance required.
• Removable covers provide easy access to components for cleaning and service.

Options

• Vacuum system with digital vacuum control (pumps: 63 or 100 m3/h).
• Gas flushing system (MAP).
• Printed film centering system, date coders and liquid separator.
• Cantilever film roll support and gas accumulator tank.
• Accessories to simplify cavity changes and speed control for liquid products.
• Maximum tray height: 120 mm.

Technical specifications

• Model: SMART 500 (semiautomatic traysealer).
• Performance: up to 8 cycles/min (cut & seal); up to 5 cycles/min (MAP).
• Packaging types: MAP and vacuum.
• Transport: manual tray transport system.
• Max tray height: 120 mm.
• Vacuum pump options: 63 or 100 m3/h (internally mounted).
• PLC: SIEMENS; Display: LCD; Programmability: up to 20 set‑ups.
• Sanitation: electrical compliance IP65; construction in corrosion‑resistant materials.
• Format change: tray height change ~1 min; full cavity change < 5 min, tool‑free.
