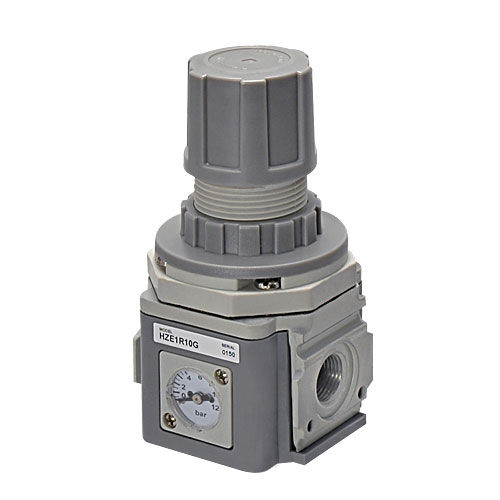

Compressed air pressure regulator HZE-R series
membranesingle-stagepneumatic

compressed air pressure regulator
compressed air pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for compressed air
Technology
membrane
Number of stages
single-stage
Applications
pneumatic
Pressure

Min.: 0.5 bar (7.25 psi)

Max.: 8.5 bar (123.28 psi)

Flow

100 l/min, 2,100 l/min, 4,300 l/min (26.42 us gal/min)

Description

Air treatment units New series available in 3 sizes -H2E0 Gl/4*(40 mm) -HZE1 - G3/8'(63 mm) -HZE2 Gl/2*(80 mm) Standard configurations -Filter -Regulator -Lubricator -Filter regulator (FR) -Filter regulator + Lubricator (FR+L) -Filter + Regulator + Lubricator (F+R+L) Integrated square pressure gauge standard supplied (where foreseen) TECHNICAL CHARACTERISTICS Ambient temperature5 -60 °C Fluidcompressed air, with or without lubrication Working pressure0-5-10 bar Max pressure12 bar Size0-1-2 CONSTRUCTIVE CHARACTERISTICS Bodytecnopolymer with metal threaded elements (size 0) die-cast aluminium (size 1 - 2) Knobtecnopolymer Ring nuttecnopolymer Bowlpolycarbonate Bowl guardtecnopolymer (size 1-2) Filter elementsintetic fi bre Sealsnitrile rubber Springssteel Diaphragmfabric reinforced rubber
