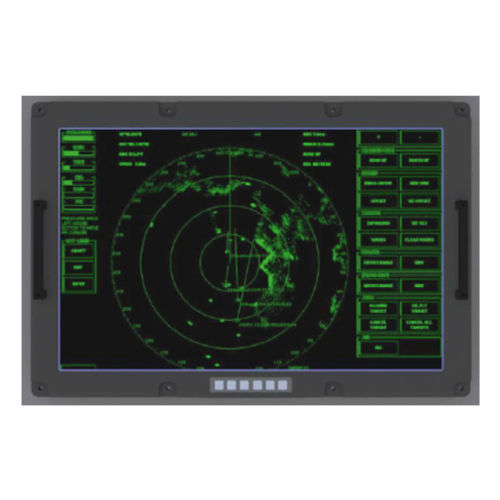

TFT-LCD monitor MILGrade

projected capacitive touchscreenmultitouch screenresistive touch screen

Highly passionate to build high reliable and cost effective products for military applications. Product Specifications Active Area - 581.4" (H) x 324.0" (V) mm Pixel Pitch - 0, 27(peonetroid) X 0.27 Aspect Ratio - 16:9 Response Time - 12ms (Gray to Gray) Light Intensity - 700 cd/m2 (typ) Contrast Ratio - 1000:1(typ) View Angle - -89~89(H), -89~89(V) Max Colors - 1.07B Synchronization Signal Auto-detect - Digital Separate Sync. Composite Sync. Sync. On Green Synchronization Range - 31.5 kHz to 60.0 kHz(H), 30 Hz to 75 Hz (V) Power Specifications - AC 110~240V (Default) DC 24V (Optional) MIL-DTL-38999/1 Connector Power Consumption 60W typical User Controls and Activity - Option 1: Power, Brightness Down?Up,Auto Adjustment, Main Menu, Day/Night Mode, Keypad Control Option 2: Power ON/OFF, Menu Brightness Control Product Dimensions - 600X400X85 mm Cutout Dimensions - 499X350 mm Mounting - VESA mountin 100 X 100mm VESA mountin 200 X 100mm VESA mountin 300 X 100mm Product Weight - -15kg Touch - Option 1: Projected Resistive Touch Operating Temperature - -10deg.C to 60 deg.C, Humidity up to 95% Storage Temperature - -20deg.C to 70 deg.C, Humidity up to 95%
