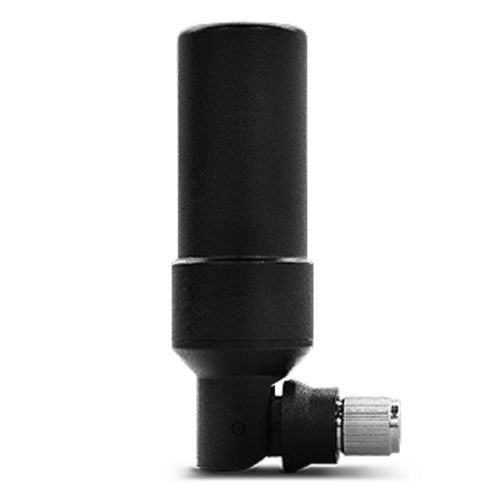

GLONASS antenna V3N-GGI-107

GPSGALILEOL-band

The V3Novus V3N-GGI-107 Helical antenna is a multi-constellation full frequency high gain geodetic surveying antenna. This small form factor antenna comes-with foldable design that allows a maximum of 90 degree bending angle for superior GNSS signal availability while integrated with surveying terminals as pad and consoles in the field. Its high sensitivity, low power consumption, small dimensions, flexible angle of signal reception make it a great match for geodetic surveying applications. Performance Signal Received Nominal Impedance - 50Ω Polarization - RHCP Axial Ratio - ≤3dB Azimuth Coverage - 360° Output VSWR - ≤2.0 Low Noise Amplifier LNA Gain - 33±2dB Noise Figure - ≤2dB Output VSWR - ≤2.0 Passband Ripple - ±2dB Operation Voltage - +3.3 to +12VDC Operation Current - ≤55mA Envirnomental Operang - -40℃ to +80℃ Storage - -55℃ to +80℃ Humidity - 95% no-condensing Mechanical Dimensions - 25mm×107mm Weight - ≤95g Connector - SMA Male
