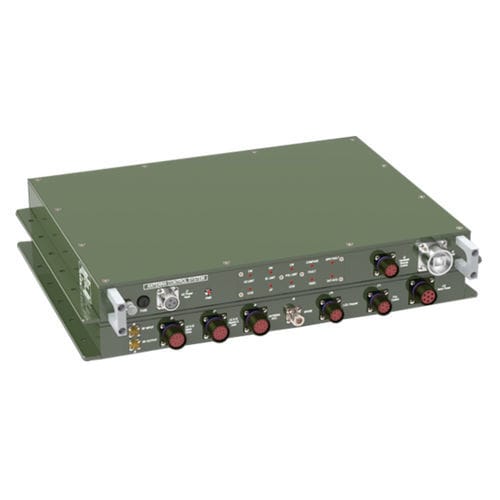

Antenna control unit Diksuchi-1

digital

DIKSUCHI is a Precise, Rugged Antenna Control Unit Built around a Powerfull Dual Core ARM Cortex-A9 MPCore Processor. DIKSUCHI is used to Control the azimuth, elevation and polarization of an Antenna. DIKSUCHI is having an integrated Satellite Beacon Receiver, PSU and GNSS Receiver (Optional). We will also provide External 3D Compass, IMU, Servo Motor Drives and Inclinometer as an Accessories along with the Antenna Control Unit. System Specifications Satellite Beacon Receiver - 1 Number with BIAS TEE Support CAN Interface - 1 Port BISS Interface - 3 Port Ethernet 10 / 100Mbps - 1 Number Analog Input ( +/- 10) V - 16 Numbers Analog output( +/- 10) V - 16 Numbers Digital Input (0-10) V - 16 Numbers Digital output (0-10) V - 16 Numbers Electrical Specifications Inputs Voltage - 230V A/C Power - Supports up to 620W Operating Temperature - -30 °C to + 60 °C Storage Temperature - –40 °C to + 80 °C Mechanical Specifications Dimensions (L x W x H) - 440 x 300 x 44mm Weight - < 6KG Material - Aluminium Color - NATO / Military Green Mounting - Flange Mount Environmental Specifications Conductive Emission - CE101, CE102, CE106 Conducted Susceptibility - CS101, CS114 Radiated Emissions - RE101, RE102 Radiated Susceptibility - RS101, RS105 Vibration - 5 ~ 500 Hz, 1.48 & 1.90 & 2.24 Grms, Method 514.6 Shock - Method 516.6 / Procedure I
