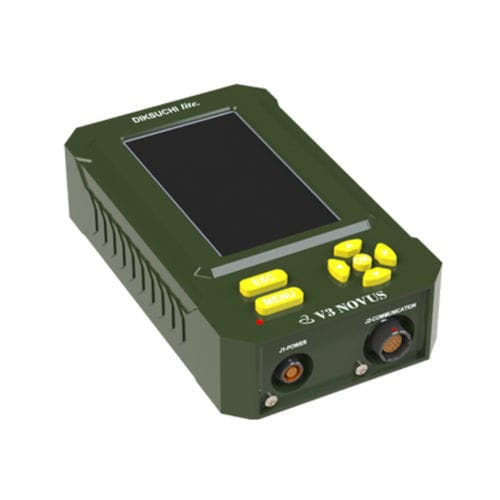

Projected capacitive touchscreen terminal Diksuchi Lite

handheldSolo / Dual core ARM® Cortex™-A7TFT LCD

DIKSUCHI LITE is intended to be used with a miniature SATCOM terminal. DIKSUCHI LITE is compact, lightweight and suitable for outdoor harsh environment including high altitudes. The controller has a provision to store data for at least 50 satellites. The unit will have a provision of selecting desired satellite using keypad and capable of displaying the selected satellite look angles. The unit is capable to analyse the incoming RF signal and determine its signal strength and provide look angles of desired Geo-stationary satellite with high accuracy. RF Receiver Frequency Range - 950MHz ~ 2200MHz Input Power - -105dBm ~ -20dBm Working Threshold - C/N0≤40dBc/Hz Amplitude Stability - ≤0.2dB Acquision Bandwidth - ±30~±100KHz Acquision Time - 4ms（Typically） Processing Delay - ≤2ms Test - Test Condition Visual Examinaon Vibraon - At room temperature Frequency : 5 to 350 Hz ± 6 mm constant displacement Or 20 m/s2 constant acceleraon Whichever is the lesser Duration : 2Hrs per Axis High temperature (Operational) - Temp. : 60⁰C ± 3, Duration: 16 Hrs. High temperature (Storage) - Temp. : 70⁰C ± 3 Duration: 16 Hrs Low temperature (Operational) - Temp. : -30⁰C ± 3, Duration: 16 Hrs Low temperature (Storage) - Temp. : -40⁰C ± 3 Duration: 16 Hrs Altude Test - Temp.: - 30⁰ C ± 3 Pressure: Equivalent to 5500meter Altude: 5500 meter. Duraon : 16 hours Tropical Exposure - The temp of chamber shall be maintained at temp: 23 ±2°C and 50 ±5 %RH Maintain above condions for 24 Hours. 1. Adjust chamber temp to +30° C ±3°C & RH 95 %. 2. Raise the temp of chamber 60°C±3°C in 2- Hrs. 3. Maintain the above condions for 6 Hrs. 4. Decrease the chamber temp to +30° C ±3°C in 8 Hrs.
