Managed ethernet switch

5 portsfast ethernetLAN

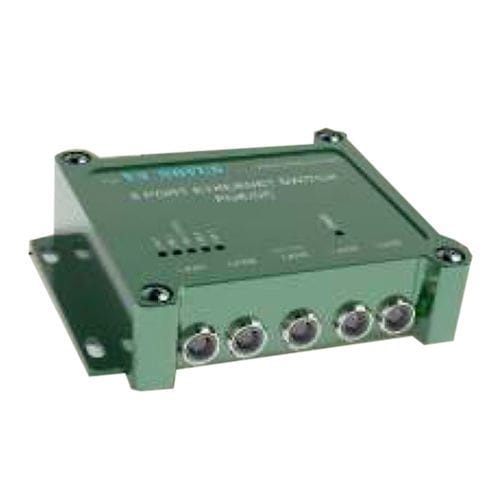

V3 Novus Military Series Rugged PoE Ethernet Switch with power distribution capabilities provides constant LAN & Power between multiple devices used by infantry soldiers. This MIL-STD, Rugged PoE Ethernet Switch with power distribution capabilities features 5 LAN 10 / 100 / 1000M Ethernet ports + power supply ports. V3N - RES - 5P features mechanical packaging enhancements designed for MIL - STD - 810F airborne and ground environmental compliance and high reliability. The unit has been especially hardened to improve ingress, impact, and shock / vibration protection. Passive cooling allows for the elimination of moving parts. Sealed connectors ensure protection against water and dust. Specifications 4 x 10 / 100 / 1000M ports + 10V -50 V / 1A Power Supply LED Indication Per Port ( link / Activity, Speed ) Networking - Full wire-speed forwarding rate Store - and -forward machanism Auto MDI - X Auto - Negotiation Protocal Address Look - Up Connectors - 1 PoE + Power Connector : GKOWAM - P16UB00 - 00L 4 LAN 10 / 100 / 1000M Connector : GKOWAM - PD8UB00 - 00L conductivity cooled w / custom internal heat - sinks Ingress protection against sand, dust and moisture Anodize Coating, MIL - A - 8625, Type II , Class Standards - MILSTD - 461F Performance - 9216 byte Jumbo Packet wire Speed forwarding rate 2K MAC Address Wire Speed Reception and transmission Integrated Address Look - up Engine Automatic Address Learning Standards Compliance - IEEE 802.3 10 Mbps 10 BASE - T ( Ethernet ) IEEE 802.3u 100 BASE - TX 100 Mbps ( Fast Ethernet ) IEEE 802.3x Flow Control IEEE 802.3 1000 BASE - TX 100 Mbps Power - Voltage Input : 10 VDC - 50 VDC Supply Power Consumption : 140W maximum
