GNSS receiver

RTKGPSGLONASS

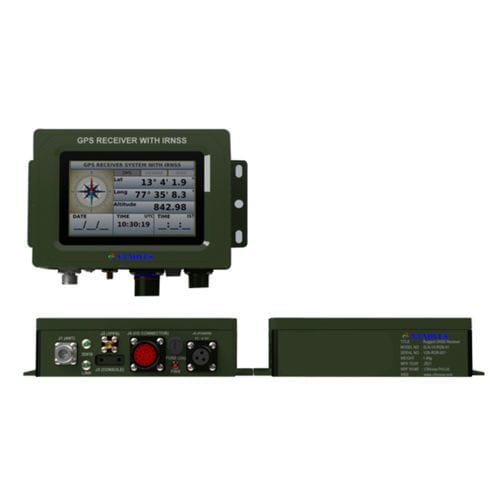

V3Novus Rugged GNSS Receiver is a GPS, GLONASS, QZSS, BeiDou, GALILEO, IRNSS L5 and S-Band Receiver designed and built to meet Military Standards, Our receiver is a Concurrent Receiver Supporting IRNSS L5 and S-Band along with other GNSS Frequencies. Receiver Specifications No. of GNSS Constellations - 05 L1(C/A)/L2(C/A), IRNSS L5/S-band, Cold Start TTFF - < 45 seconds (95%) Hot Start TTFF - < 20 seconds (95%) Sensitivity - -136 dBm Acquisition -155 dBm Tracking Positioning Modes - GPS Only GLONASS Only Combined GPS and GLONASS Differential GPS IRNSS Only Position Accuracy - Standalone mode: 1.5m(H) 2m(V) (95%) With SBAS: < 1m(H) 1.4m(V) (95%) With DGPS: 0.25m(H) 0.5m(V) (95%) With RTK: 5 mm + 0.5 ppm (H) 8 mm + 1.0 ppm (V) (95%) Velocity Accuracy - 0.2 m/s, (95%) Time Accuracy - <100 ns (95%) Update rate - 1Hz ~ 20Hz Dynamics - Max Velocity: 515 m/s Max Acceleration: 4g Altitude - Max Altitude: 18,000 m Min Altitude: -1000m Electrical Specifications Power Input - 9-36V DC Continuous Power Consumption - < 3 Watts Operating temperature - –40 °C to +80 °C Storage temperature - –55 °C to +85 °C Physical Specifications Dimensions (L x W x H) - 170 mm x 120 mm x 50 mm Weight - ~1.4 kg Installation - FLANGE Mount Cooling - Passive Conduction Chassis - Aluminum alloy Color - NATO Green Mass Continuity - Severity as per MIL-STD-461F MTBF - 20000 hours
