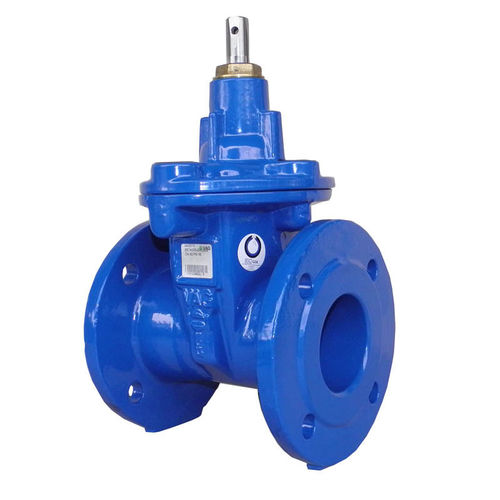

Distribution valve EKO®plus gatewith handwheelpneumatically-operated
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel, pneumatically-operated, electric
- Function
- distribution
- Media
- for water
- Body
- flange, seat, stainless steel, brass, cast iron, iron
- Applications
- for vacuum, for water systems
- Other characteristics
- ISO, ANSI, standard, corrosion-resistant
- DN
Min.: 50 mm
(1.969 in)Max.: 400 mm
(15.748 in)- Pressure
16 bar
(232.1 psi)- Temperature
50 °C
(122 °F)
Description
Resilient-seated gate valve with bolted cover connection and flanges according to the ANSI/AWWA standard. Proven design with innovative improvements, such as plastic sliding caps on the wedge, guarantee low operating torques even after many years of use. Suitable for use in water distribution, in power plants, in industry and in pressure management.
Product features and benefits
- Resilient seated in accordance with EN 1074
- Face-to-face length acc. to EN 558-2 R3 (BS 51663 / ISO 5752 / ANSI B16.10)
- With flange ends on both sides acc. to ANSI B16.1 Class 125/150
- Low operating torque due to plastic sliding guides on the wedge
- Maintenance-free and corrosion-resistant stem sealing
- With triple O-ring sealing
- Low wear due to wedge guiding and elongated stem bearing
- Suitable for vacuum of up to 90%
