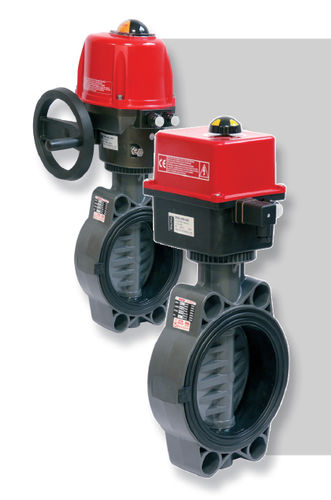

Butterfly valve 431, 433, 434electrically-actuatedPVC
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- electrically-actuated
- Body
- PVC
- DN
Max.: 200 mm
(7.874 in)Min.: 40 mm
(1.575 in)- Pressure
10 Pa
(0 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)
Description
Working pressure: 10 Bar
PVC valve
EPDM liner
Fluid temperature: 0°C to + 60°C
Actuator temperature: ER PLUS : -10°C à +55°C (Failsafe : -10°C à + 40°C)
VR / VS : -20°C à +55°C (Failsafe : -10°C à + 40°C)
Duty rating : 50% (ER PLUS and VS) - 30% (ER PREMIER) (CEI34)
Enclosure: IP66 (ER PLUS) or IP65 (ER PREMIER) or IP67 (VS)
Electric connections:
1x ISO M20 and 1 x DIN43650 3P+T (ER PLUS and ER PREMIER)
2 x ISO M20 (VS).
