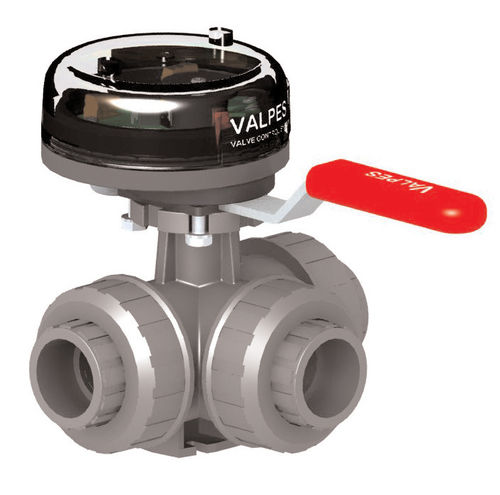

Ball valve 339manualcontrolT
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- control
- Body
- T, PVC
- Number of channels
- 3-way
- DN
Min.: 15 mm
(0.591 in)Max.: 50 mm
(1.969 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)
Description
PTFE ball seats
EPDM shaft “o” ring (FPM on request)
PVC valve (PP on request)
F04,F05 and F07 ISO5211 plate
Socket/BSP threaded***
Working pressure: 10 Bar
Fluid temperature: 0°C +60°C**
LIMIT SWITCH BOX DESCRIPTION
PFB.50 = two electrical Crouzet limit
switches - 250V AC - 5A
PFB.55 = two IFM IS5026 proximity limit
switches - 5V...36V DC - 200 mA
PFB.56 = two IFM NS5002 Namur
intrinsic EEx ia IIC T6 - PTB 01 ATEX2191
5V...25V - 2mA
Housing: GF Nylon
Cover: Lexan - IP65
