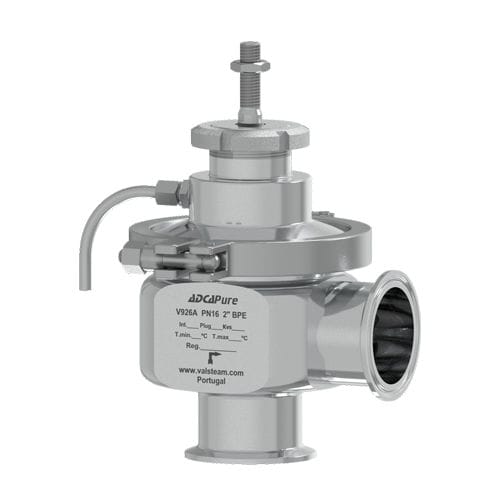

Diaphragm valve V926A

pneumaticelectrichydraulic

The ADCAPure V926A is a series of single seated two-way aseptic control valves with angle connections. These valves are designed to regulate and accurately control flow of liquids and gases and are suitable for high purity applications found in the pharmaceutical, cosmetic, fine chemical and food & beverage industries. The V926A can be assembled with pneumatic, hydraulic or electric actuators, for modulating and shut-off control tasks. Completely manufactured from bar stock material. Body and bonnet are connected by a clamp connection, allowing fast and easy maintenance procedures. High-performance EPDM diaphragm stem sealing. Cavity-free with no air trap locations. Metal to metal or soft sealing. Self-drainable design. Soft valve sealing. Reduced bore trims. Heating chamber. Inline connections. Saturated steam, hot and superheated water. Process fluids, liquids, air and gases compatible with the construction. Assembling and packaging in a clean room certified according to ISO 14644-1. The product is end capped and sealed with recyclable thermo-shrinkable plastic film, to avoid contamination. Horizontal installation. Vertical inlet and horizontal outlet. See IMI – Installation and maintenance instructions.
