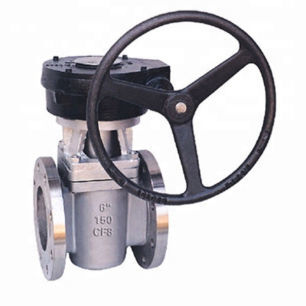

Jacketed valve plugwith handwheelpneumatic
Add to favorites
Compare this product
Characteristics
- Type
- plug
- Operation
- with handwheel, pneumatic
- Media
- for water, for air
- Body
- flange, jacketed
- Applications
- flange, food, for gears
- Material
- medium, steel, alloy, stainless steel, cast iron, carbon steel, iron
- Associated function
- sewage
- Other characteristics
- ANSI, standard, actuated
- DN
Max.: 600 mm
(23.622 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 420 bar
(6,091.6 psi)Min.: 16 bar
(232.1 psi)- Temperature
Max.: 150 °C
(302 °F)Min.: -29 °C
(-20 °F)
Description
Name - Jacketed Plug Valve
Design standard - API 599,API 6D,ASME B16.34; BS 5353
Body - Carbon Steel,Cast Iron,Ductile Iron,Alloy Steel,Stainless Steel
Fire safe design - API607,API 6FA
End flange - ANSI B 16.5,ASME B16.47; EN1092,DIN2543~DIN2547,AS2129
Screwed dimension - ANSI B1.20.1; BS21;JIS BO20
End flange - ANSI B 16.5,EN1092,DIN2543~DIN2547
Face to Face - ANSI B 16.10,API 6D; DIN3202,EN558-1,EN12982,ISO 5752
Test standard - API598,API6D; DIN3230,EN12266,ISO 5208
Medium - Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.
Acidic environment - NACE MR0175
Operation - Hand Operated,Gear Operated, Electrical Actuated, Pneumatic Actuated
