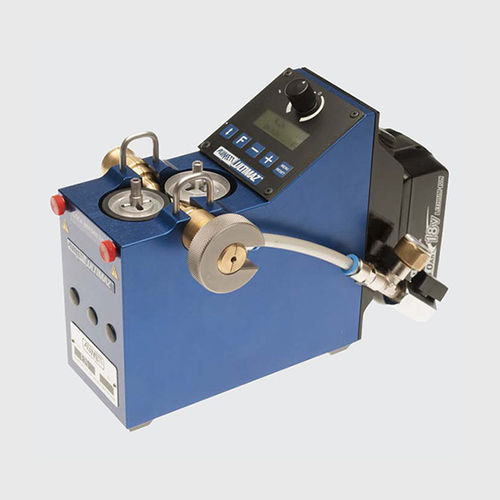

Cable blowing machine E25

Product overview
ULTIMAZ E25, cable blowing machine for microcables and bundle fibers for building network installations up to cable lengths of approx. 300 m.

Description

• The ULTIMAZ E25 is the further development of the ULTIMAZ P2P and is designed as a comfort machine for use in building network technology.
• Improved performance data and more convenient handling compared with previous models.
• The battery-powered electric drive allows up to eight hours of work on site.
• Push force is selected electronically by the operator in six steps from 5–22 N; the applied push force on the cable is determined by a crash test to avoid damage to sensitive bundle fibers or microcables.
• Automatic clamping of the drive roller system: clamping force is calculated electronically based on the selected push force and set automatically.
• Maximum speed is electronically regulated depending on push force (80–180 m/min).
• Designed for building installation with many bends and when working with fire-rated cables and microducts at elevated pressures; required air volume is low, allowing use of small compressors or gas bottles.
• The ULTIMAZ is a proven device; delivery without cable and duct inserts. Accessories, additional services and technical data are available.

Drawings / Datasheets / Multimedia
Drawings/datasheets and an embedded video are available on the product page.

Characteristics / Technical specifications

• Code: 423210
• Push force: 0–22 N (electronically selectable in six steps; 5–22 N in operator configuration)
• Compressed air: 10–12 BAR
• Duct Ø: 3–12 mm
• Cable Ø: 0.8–4.0 mm
• Weight: 9.4 kg
• Drive: battery-powered electric drive (up to approx. 8 hours on site)
• Speed: electronically controlled, approx. 80–180 m/min (dependent on push force)
