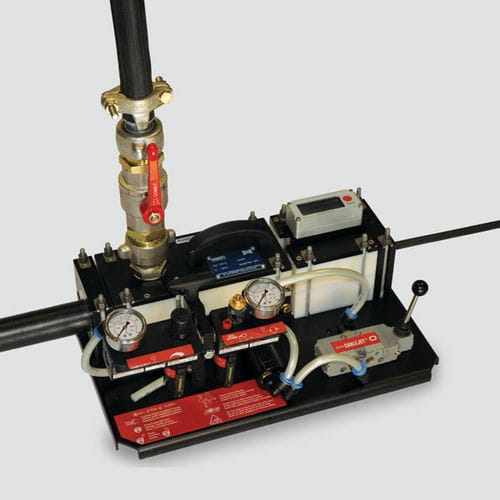

Cable blowing machine CJS 19

Product description
The CableJet CJS 19 is a pistonless pneumatic cable blowing machine designed to transport cables through ducts with minimal friction. Airflow at high speed carries the cable along the entire length while a low-force mechanical drive provides synchronized feed. The system allows effective installation even through tight or frequent bends and can be operated in various positions (above manholes, inside shafts, in trenches, etc.). Personnel requirements are low and the method enables long single-pass blowing distances and consistent results in demanding routes.

Additional information

• Brand: Vetter
• Code: 410100
• Series: CableJet™

Drawings / datasheets
No documents available

Characteristics / technical specifications

• Compressed air: 10 m³ / 12 BAR
• Pipe diameter (A-Ø): 28–63 mm
• Cable diameter: 9–19 mm
• Weight: 47 kg
