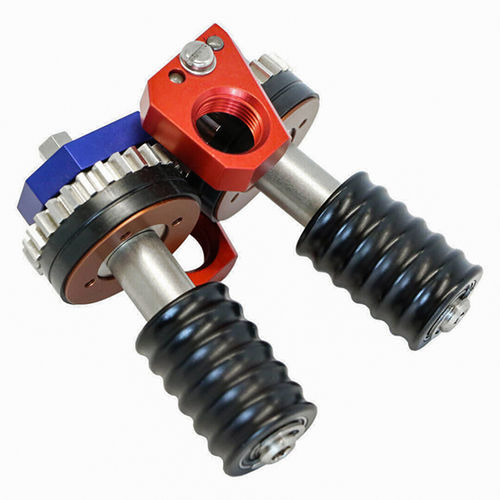

Insertion unit EZS 058

Product overview
The EZ.SPEEDY EZS 058 from Zeitler is a push-feed unit for machine-assisted insertion of cables (Ø 0.5 mm to 8.0 mm) into microducts. It is suitable for microducts with outer diameters from 4 to 16 mm and can be driven by a standard cordless drill to insert cables quickly and without kinking.

Applications

• Insertion from building handover point to distribution box
• Connections from distribution box to residential units and in‑premises wiring to one or multiple outlets

Package contents (single case)

• 1 EZ.SPEEDY base element (blue)
• 2 EZ.SPEEDY standard handles
• 1 EZ.SPEEDY insertion plate (red)
• 1 EZ.SPEEDY exit plate (red)
• 2 EZ.SPEEDY spur gears
• 2 EZ.SPEEDY transport rollers (black)
• 2 EZ.SPEEDY aluminium cores for transport roller
• 2 EZ.SPEEDY cable guides
• 1 duct adapter – 7 mm
• 8 spare screws in plastic sleeve
• 1 8 mm socket spanner
• 1 8 mm open-ended spanner
• 1 5 mm Allen key
• User manual

Drawings / Data sheets
No documents available

Technical details
L/W/H mm: 100/90/70
Max. pressure: 15 BAR
Suitable duct outer Ø mm: 4/5/7/8/10/12/14/16
Suitable cable Ø mm: 0.5–8
Weight: 8 kg

Key specifications

• Model: EZS 058
• Manufacturer/Series: Zeitler / EZ.SPEEDY
• Application: Insertion/blowing of fiber/cables into microducts (FTTx)
• Cable diameter (suitable): 0.5–8.0 mm
• Duct outer diameter (suitable): 4–16 mm
• Dimensions (L/W/H): 100 / 90 / 70 mm
• Maximum operating pressure: 15 BAR
• Weight: 8 kg
• Package contents: base element, handles, insertion/exit plates, gears, transport rollers, cores, cable guides, 7 mm duct adapter, spare screws, tools, manual
