Installation kit FTK 1L

Product description
The FTTx Kit 1 is a compact, application-oriented installation set for professional FTTx and fiber-optic installations. The kit combines cable-blowing and cable-insertion equipment that enable efficient, precise and time-saving cable routing. Designed for use in residential and commercial buildings, it supports efficient workflows in fiber rollout and ensures accurate, reliable installations.

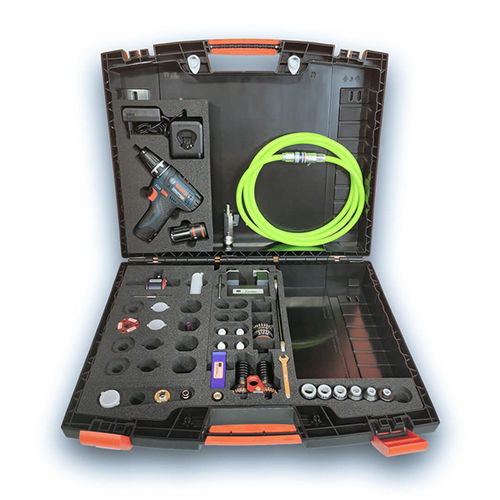

Kit case contents:

• EZ.SPEEDY (push unit) basic equipment for cable diameter 1–2 mm and 2–3 mm
• 1 EZ.SPEEDY base element
• 2 EZ.SPEEDY standard handles
• 1 EZ.SPEEDY insertion plate
• 1 EZ.SPEEDY output plate
• 2 EZ.SPEEDY pinions
• 2 EZ.SPEEDY transport rollers (black)
• 2 EZ.SPEEDY aluminium cores for transport roller
• 2 EZ.SPEEDY cable guides
• 6 pipe adapters (Ø 7, 8, 10, 12, 14 and 16 mm)
• 8 spare screws in plastic sleeve

EZ.BOOSTER (blowing unit) basic equipment

• 1 EZ.BOOSTER main body
• 1 EZ.BOOSTER coupling plate (violet)
• 1 EZ.BOOSTER guide head (red)
• 15 rubber discs in plastic sleeve
• 6 spare screws in plastic sleeve

Additional equipment

• 1 FTTx Kit 1 expansion set
• 1 EZ.SPEEDY mounting block (grey)
• 1 coupling piece for EZ.SPEEDY
• 1 compressed air hose 3 m
• 1 ball valve without closure
• 1 plug nipple with internal thread
• 1 socket wrench 8 mm
• 1 open-end wrench 8 mm
• 1 open-end wrench 20/22 mm
• 1 TORX pin wrench T20
• 1 Allen key 5 mm
• 1 BOSCH cordless drill-driver GSR12V-15 including charger and extra battery (Li-Ion < 20 Wh: PI 966-II)
• User manual

Drawings / datasheets
No documents available

Technical specifications

• Cable Ø mm: 1-2 / 2-3
• Weight: 8 kg
• Article code: 428200
