Pneumatic cable blowing machine EZB 058

Overview
Closed pneumatic unit for blowing cables with a diameter of 0.5–8.0 mm into microducts. The EZ.BOOSTER is driven by compressed air from a standard small compressor to feed the cable quickly and safely into microducts without kinking. Suitable for ducts with an outer diameter of 4–16 mm.

Application
Set including the pneumatic cable push device for direct blowing of cables using a compressor. Designed for use with microducts and compatible with EZ.SPEEDY.

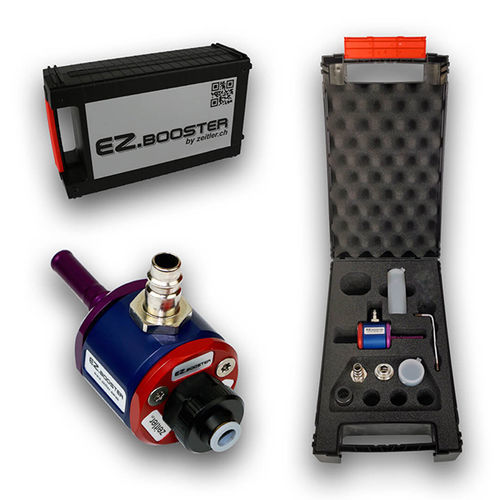

Contents

• 1 EZ.BOOSTER main body
• 1 EZ.BOOSTER coupling plate (violet)
• 1 EZ.BOOSTER guide head (red)
• 1 pipe connector - Ø 7 mm
• 1 coupling
• 1 threaded plug
• 15 rubber disks in plastic sleeve
• 6 replacement screws in plastic sleeve
• 1 Torx pin key T20
• 1 user manual

Drawings / Data sheets
No documents available

Technical specifications

• Code: 428300
• Cable Ø: 0.5 - 8.0 mm
• For: EZ.SPEEDY
• Applicable duct outer diameter: 4 - 16 mm
• Weight: 6 kg
