Stainless steel cable pulling tool SVR 70

compact

Product overview

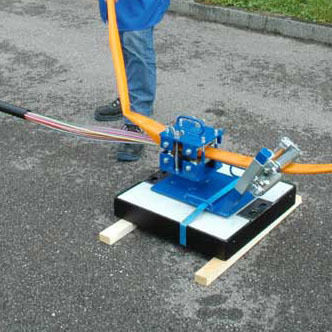

Cutting unit for subduct bundles designed to cut open and remove the outer cover of a subduct-bundle before the bundle is pulled into a duct from a single drum. The unit includes a double knife, eight guiding rollers and a leading tongue in stainless steel.

Main features

• Double knives for longitudinal cutting of the bundle cover
• 8 guiding rollers to stabilise the bundle during feed
• Leading tongue made of stainless steel for smooth lead-in
• Lead-in width: 70 mm; lead-in height: 15-30 mm
• Compact footprint: L/W/H 480/330/290 mm; Weight: 30.1 kg

Applications
Designed for installers and contractors handling high-density routing of subducts in pipes and ducts. Used to prepare a subduct-bundle for pulling-in from a single drum by quickly cutting and removing the protective cover.

Technical details

• Product code: 273905
• Model: SVR 70
• L/W/H: 480/330/290 mm
• Weight: 30.1 kg
• Lead-in width: 70 mm
• Lead-in height: 15-30 mm
• Components: double knife; 8 leading rollers; leading tongue made of stainless steel
• Use: cutting unit for subduct bundles to remove cover before pulling-in
