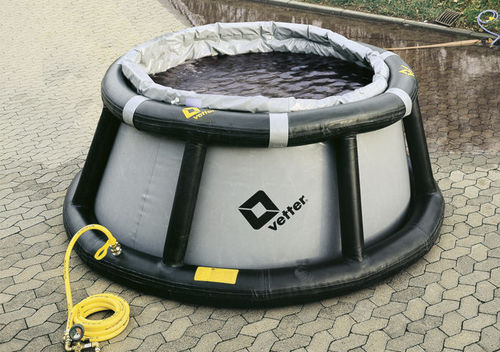

Flexible tank PAB series

openPVCstorage

Description
Collect and store large volumes of hazardous liquids with Vetter pneumatic collection containers. They deploy in seconds to form a secure temporary reservoir that can be easily pumped out by your team when required.

Available configurations

• Capacity options: 3000 l (selected), 5000 l (available)
• Material options: PVC (standard), Alcryn (optional)

Product identity

• Product number: 1510000101

Technical data table

• Length: 1100 mm
• Width: 720 mm
• Height (meta): 300 mm
• Height (table): 950 mm
• Weight: 33 kg
• Air requirement at working pressure [l]: 705
• Capacity [l]: 3000
• Test pressure: 0.65 bar / 9.43 psi
• Operating pressure: 0.5 bar / 7.25 psi
• Inner diameter: 225 cm / 88.58 in
• Outer diameter: 265 cm / 104.33 in

Technical specifications

• Product number: 1510000101
• Capacity: 3000 l (variant available: 5000 l)
• Length / Depth: 1100 mm
• Width: 720 mm
• Height (meta): 300 mm
• Height (table): 950 mm
• Weight: 33 kg
• Air requirement at working pressure: 705 l
• Test pressure: 0.65 bar / 9.43 psi
• Operating pressure: 0.5 bar / 7.25 psi
• Inner diameter: 225 cm / 88.58 in
• Outer diameter: 265 cm / 104.33 in
