Sealing lifting bag 147000 series

Protects sewage system and ground water from hazardous materials.

Description and use

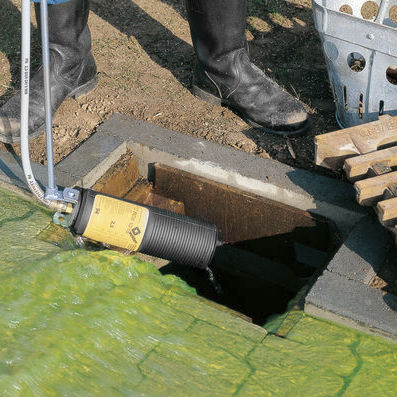

Stop the flow of hazardous liquids along roads, into sewage systems or into ground water. The universal gully sealing bag is ready for immediate use, easy to position and reliable. Place the bag at the gully outlet using the guiding rod and use the sewer inlet as a pump sump. Inflate the bag with the included foot pump. Available as a basic set for one gully size or as a premium set covering two gully sizes.

Product number
1470002400

Applications

• Chemical spills and leaks
• Flood containment
• Sealing gullies to prevent contamination
• Using inlet as temporary pump sump

Technical specifications

• Sealing area: 50 x 30 cm
• For outlets with diameter ≥ 50 cm
• Test counterpressure: 145 psi
• Test pressure: 3.25 bar / 47.14 psi
• Operating pressure: 2.5 bar / 36.26 psi

Features

• Easy positioning with guiding rod
• Integrated fill hose provides working distance
• Channel can be re-covered with a grate during deployment
• Retention lanyard for lowering and securing the bag
• Inflatable with included foot pump for rapid deployment
• Individually tested (inspection seal)
• Ozone resistant with good oil and chemical resistance
